• Regupol 4515 Eco Acoustic Underlayment

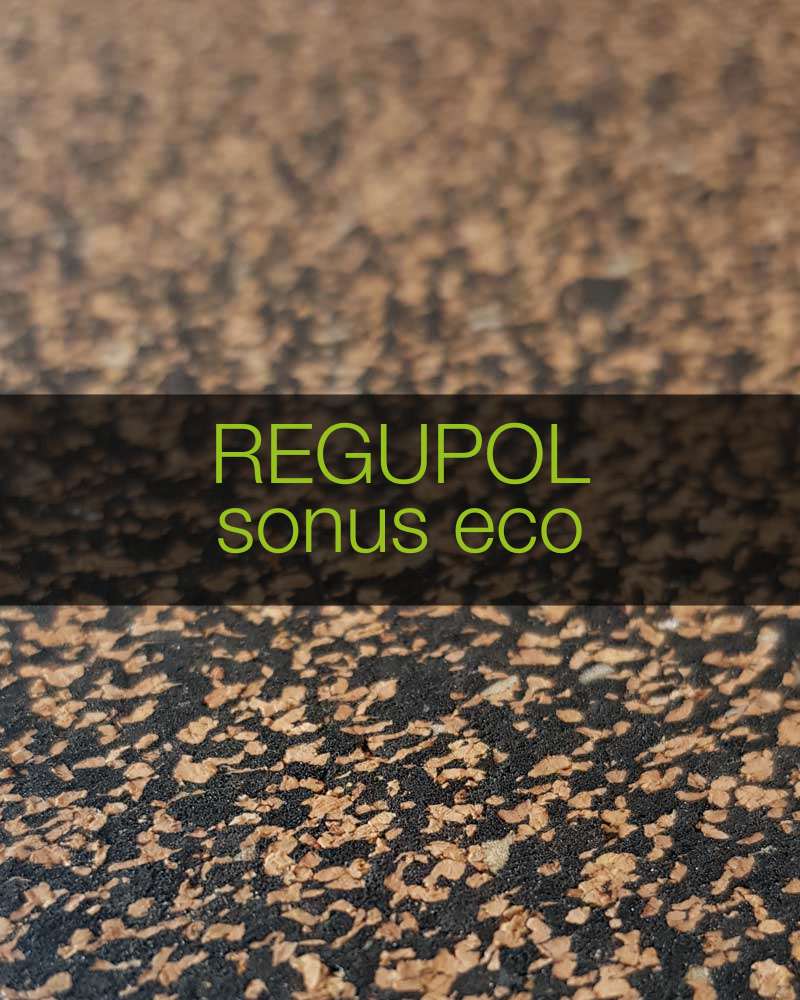

Regupol 4515 Eco Soundproof Underlay

Now known as REGUPOL sonus eco

Designed to attenuate impact sound at source on all types of subfloor.

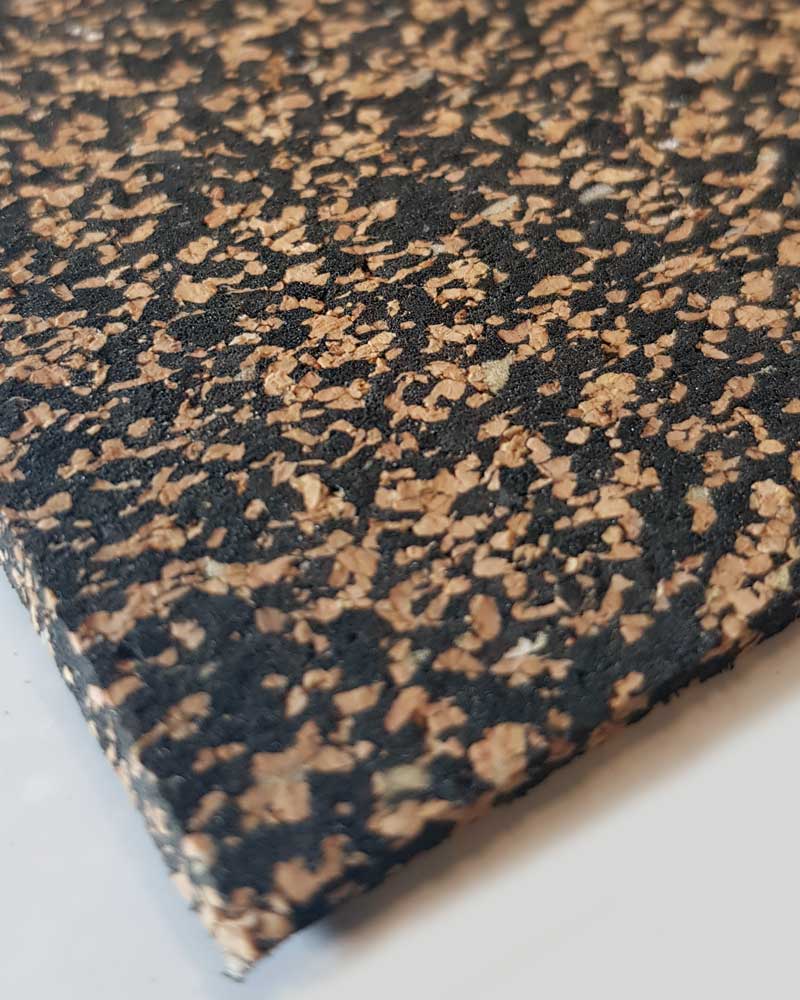

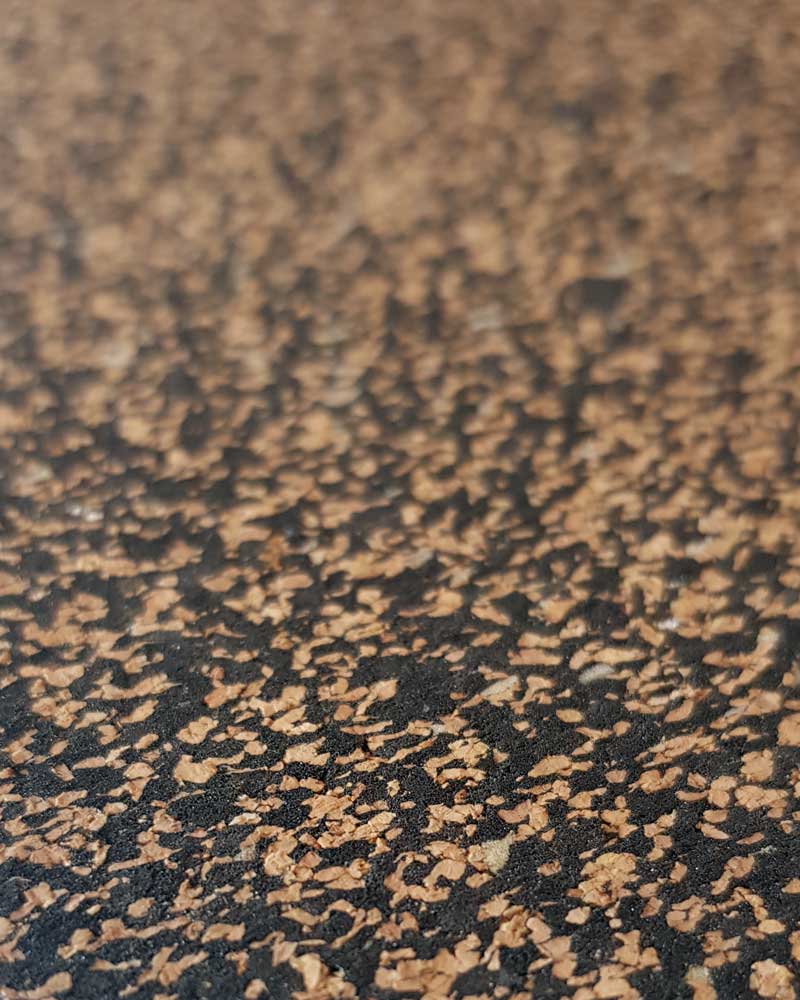

Regupol® 4515 Eco (REGUPOL sonus eco) soundproof underlay is a general purpose acoustic underlayment manufactured from a combination of cork granules and rubber granulate. Designed to attenuate impact sound at source on all types of subfloor. A tough resilient low cost underlayment Regupol®4515 Eco (REGUPOL sonus eco) soundproof underlay can insulate beneath all types of wooden based floor finishes such as laminate hardwood and engineered board. For new builds refurbishments and bespoke architectural projects including residential commercial and education settings.

Download Our Technical Data Sheet REGUPOL sonus eco 3Download Our Technical Data Sheet REGUPOL sonus eco 4.5

Benefits

  • Regupol®4515 Eco (REGUPOL sonus eco) soundproof underlay been independently tested by a UKAS accredited laboratory to show compliance with the new building regulations in accordance with Approved Document E 2003.
  • Standard thickness 3mm & 4.5mm.
  • Offers long term performance without collapse or “bottoming” out under highpoint loads.
  • Resistant to ageing and deformation.
  • Quick and easy to install. Simply bond to the subfloor beneath the final floor finish.
  • Reduces construction heights.
  • High quality and exact material thickness guaranteed.
  • Suitable for use with under floor heating.
  • Very comfortable under foot.
  • Zero GWP (Global Warming Potential) and Zero ODP (Ozone Depletion Potential).

Applications

Regupol®4515 Eco (REGUPOL sonus eco) soundproof underlay  has a sound insulation performance of  Lw 18dB. It is compatible with many types of floor finishes and give s the following acoustic performances when combined with:

Floor Finish
Impact Sound Performance
Regupol® 4515 Eco (REGUPOL sonus eco) soundproof underlay beneath Ceramic tiles
19dB
Regupol® 4515 Eco (REGUPOL sonus eco) soundproof underlay beneath Vinyl
20dB
Regupol® 4515 Eco (REGUPOL sonus eco) soundproof underlay beneath laminate
18dB
Regupol® 4515 Eco (REGUPOL sonus eco) soundproof underlay beneath flotex
22dB
Regupol® 4515 Eco (REGUPOL sonus eco) soundproof underlay beneath carpet
34dB
Regupol® 4515 Eco (REGUPOL sonus eco) soundproof underlay beneath marmoleum
18dB
Measured in accordance with BS EN ISO 140-8:1998

Specification

Technical Information

Density
Tensile
strength
(DIN 53571)
Elongation at break
(DIN 53571)
Temperature resistance
Thermal conductivity
Impact sound
insulation ΔLw
Approx 470kg/m3
Approx 0.6N/mm2*
Approx
18%
-40 to + 110oC
Approx
0.085W/mk
17dB**
*(3mm thick) ** (measured in accordance with BS EN ISO 140-8:1998)
Please contact CMS Danskin Acoustics for independent test certificates relating to specific floor finishes.

Physical Information

Roll Width
Roll Lengths
Material thickness
Material construction
1150mm
20m (3mm) & 12m (4.5mm)
3mm & 4.5mm
Rubber/cork

Accessories

CMS Bond 100 High Performance Acoustic Sealant for Use with Regupol® 4515 Eco (REGUPOL sonus eco) Soundproof Underlay

CMS Bond 100 is a solvent free low VOC high performance water based acrylic dispersion with very good bond strength. It is suitable for plasticized vinyl floor coverings (including PVC tiles) together with high density foam backed carpets.

Guarantee

CMS Bond 100 is distributed in the UK by CMS Danskin Acoustics. The adhesive manufacturer will guarantee the performance and quality of products against manufacturing defects provided they are used in accordance with our relevant Technical Data Sheets at the time of installation and the appropriate sub floor preparation has been undertaken in accordance with the relevant British Standards.

Floor covering manufacturers are constantly introducing new backings and improving their current products. Certain backings may have unique characteristics which may influence the choice of adhesive used. Whilst every effort has been made to ensure the information is correct at the time of publication it is the responsibility of the user to ensure that the product is suitable for the particular installation.
If there is any doubt as to the use of our adhesives the installer should contact CMS Danskin Acoustics for advice or carry out their own tests to ensure compatibility.

Important steps before you lay CMS Bond 100 – Surface Preparation

Suitable sub-flooring substrates include concrete, flooring grade hardboard, plywood, chipboard, sand/cement screed, proprietary good quality self-smoothing underlayments. Asphalt and surface membranes should be treated with at least a 3mm coating of the latter before applying the adhesive.

Site conditions should comply with the latest British Standards editions: BS 8102 (Code of Practice for protection against moisture from the ground), BS 8203 (Code of Practice for installation of resilient floor coverings), BS 5325 (Code of Practice for installation of textile floor coverings), BS 8204 part 1 (Code of Practice for installation of self levelling screeding compounds), and supplementary specifications.

Surfaces must be level, firm and clean, free of loose material, mould, oil, grease, organic growth and surface moisture (under 75% RH).

Uneven, dusty or friable surfaces should be treated with the appropriate universal primer and screed.*

It is essential that suitable damp proof membranes be in place to prevent rising damp.*

Under floor heating should be turned off for at least 48 hours prior to and after application.

Particular attention must be paid to the floor covering manufacturer’s instructions. i.e. any pre storage conditions prior to fitting.

*Please contact CMS Danskin for further information.

Installation

CMS Bond 100 is a ready to use versatile product and should not be diluted or adulterated in any way.

Application

Use a notched trowel of dimensions 1.5mm x 5mm or as CFA guidelines.

Heavy textured floor coverings may require a larger towel.

Apply adhesive evenly to the substrate and depending on the substrates lay the floor covering while still wet. It is best to allow the freshly applied adhesive to stand for 15-45 minutes depending on the ambient conditions, to build tack before embedding the floor covering.

Press firmly into place and rill using a 60/70Kg roller or glider depending on material used. Roll again approximately 1 hour after application.

Wait at least 24 hours before welding vinyl seams.

Removal of adhesive from tools

Clean tools with water if adhesive is still wet or use white spirits if it has dried.

Product Specification
ColourOff White
ConsistencyTrowelable Mastic
Open Time15 minutes plus depending on site conditions: Temp, humid & surfaces to be treated
Specific Gravity1.2
Shelf Life12 months if stored between 5-30°C in a dry area, in original unopened containers.
Protect from frost.
Product Technical Information
CuringHigh humidity, a low temperature and poor ventilation will retard the drying speed
Coverage3m2/kg depending on the porosity of the substrate and thickness of the adhesive film.

Adhesive and DPM

REGUPOL adhesive 46-101 Acoustic Adhesive

REGUPOL-adhesive-46-101

REGUPOL adhesive 46-101 represents the very latest development in Hybrid Polymer technology and has been formulated to give the highest levels of performance in terms of bond strength, versatility across many combinations of materials, improved acoustic performance in acoustic installations, resistance to stresses, fast curing speed and ease and cleanliness of use.

Download Our Technical Data Sheet

REGUPOL adhesive 43-105 Acrylic Adhesive for Vinyl and Linoleum

REGUPOL-adhesive-43-105

REGUPOL adhesive 43-105 is a solvent free acrylic emulsion-based adhesive, for bonding many sound insulation materials to common sub-floors and many floor finishes to the insulation. This easy to spread adhesive, with a long open time, provides early tack and minimum slip, quickly building to a strong permanent bond. It is non-staining and has excellent resistance to plasticiser migration.

Download Our Technical Data Sheet

More Regupol Products

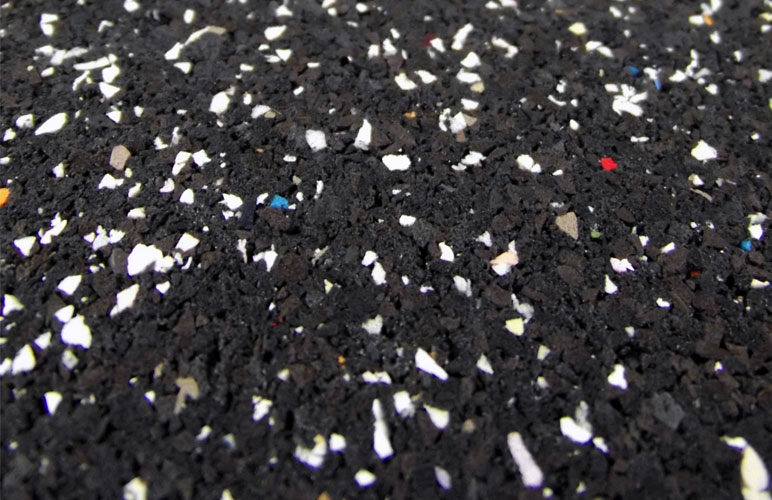

Regupol 3912

Now known as REGUPOL sonus 3912

Regupol 3912 resilient layer
Regupol 3912 (REGUPOL sonus 3912) 6mm acoustic underlay for timber floors and refurbishments.

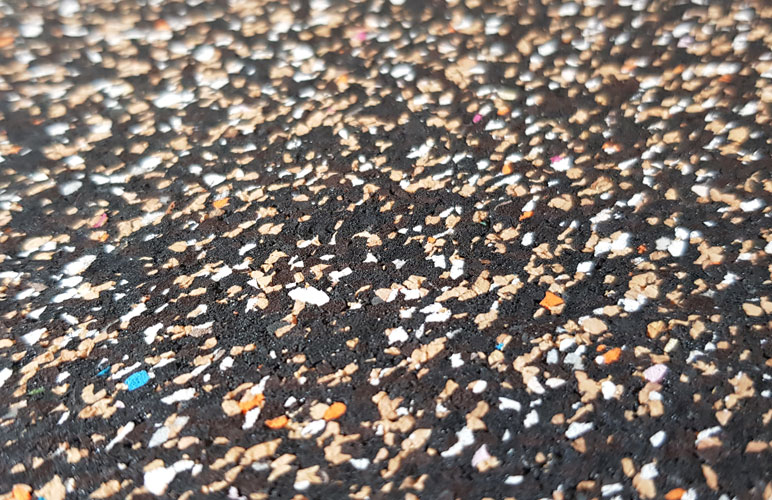

Regupol 4515 Multi

Now known as REGUPOL sonus multi

Regupol 4515 Multi Acoustic Underlay
Regupol 4515 Multi (REGUPOL sonus multi) 3-4.5mm acoustic underlay for concrete floors with light-coloured finishes.

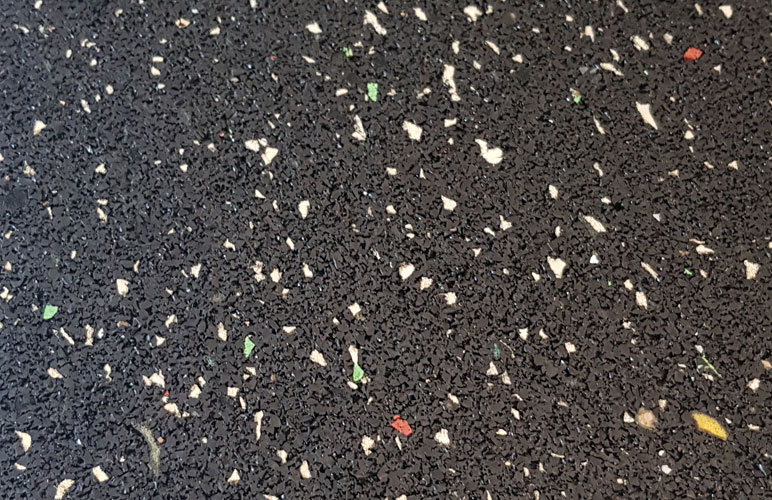

Regupol® 7210C

Now known as REGUPOL sonus core 5

Regupol 7210c Acoustic Under Screed Material
Regupol® 7210C (REGUPOL sonus core 5) Acoustic Resilient Layer is a cost-effective rubber bound product manufactured from recycled materials.

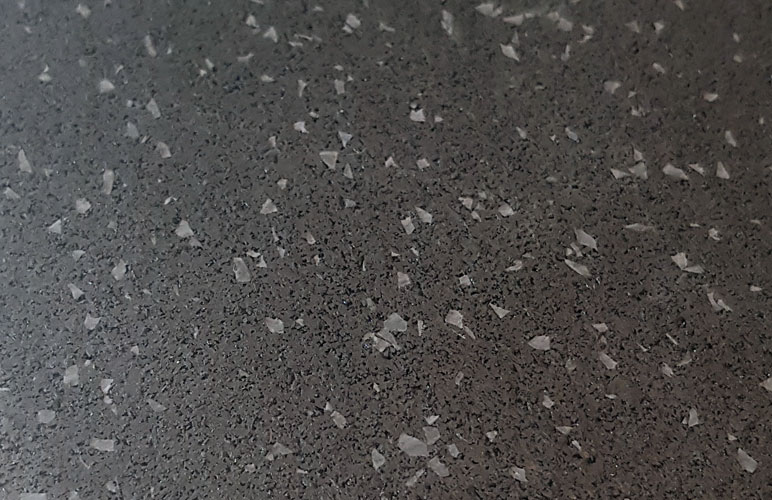

Regupol High-Impact Mat

Regupol High Impact Mat

Regupol High-Impact Mat 4-12mm non-slip final floor finish for heavy footfall areas.

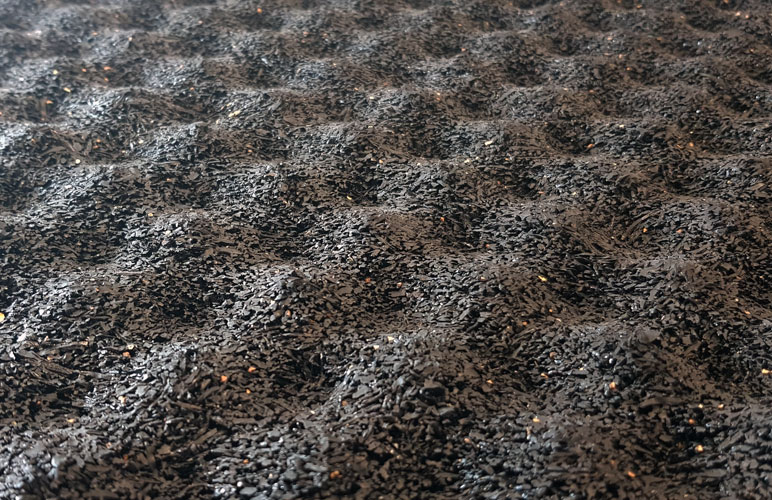

Regupol® 6010BA

Now known as REGUPOL sonus curve 17

Regupol 6010BA Acoustic Underscreed Material
Regupol 6010BA (REGUPOL sonus curve 17) 10mm underscreed with 50KN/m2 load-bearing capacity.

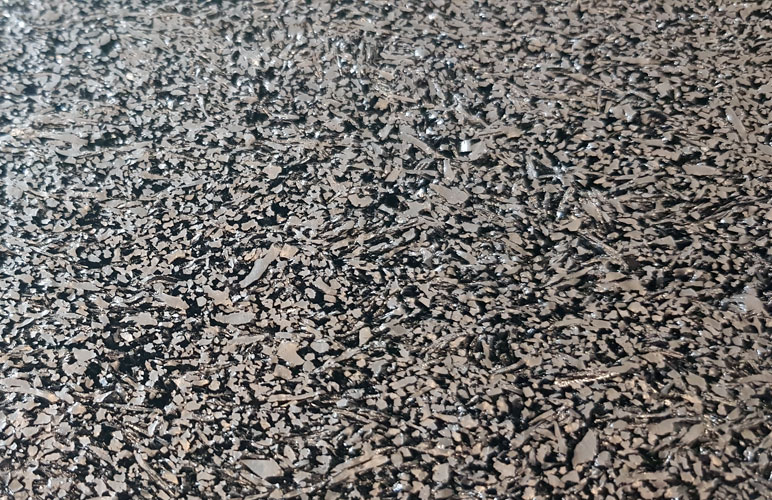

Regupol 6010SH

Now known as REGUPOL sonus core 10-S and REGUPOL sonus core 15-S

Regupol 6010SH Under Screed Sound Insulation
Regupol 6010SH (REGUPOL sonus core 10-S and REGUPOL sonus core 15-S) 10-15mm underscreed with 100KN/m2 load-bearing capacity.

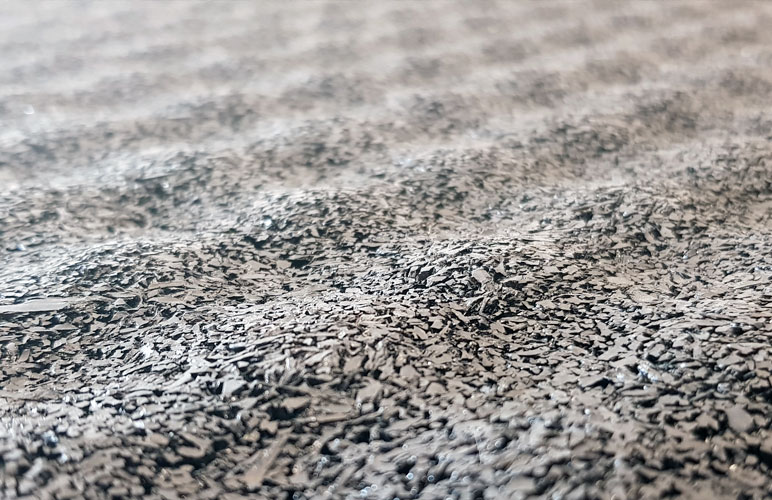

Regupol E48

Now known as REGUPOL sonus curve 8

Regupol E48 Robust Detail Underscreed
Regupol E48 (REGUPOL sonus curve 8) 8mm underscreed. Robust Detail for Beam & Block floor E-FC-6.

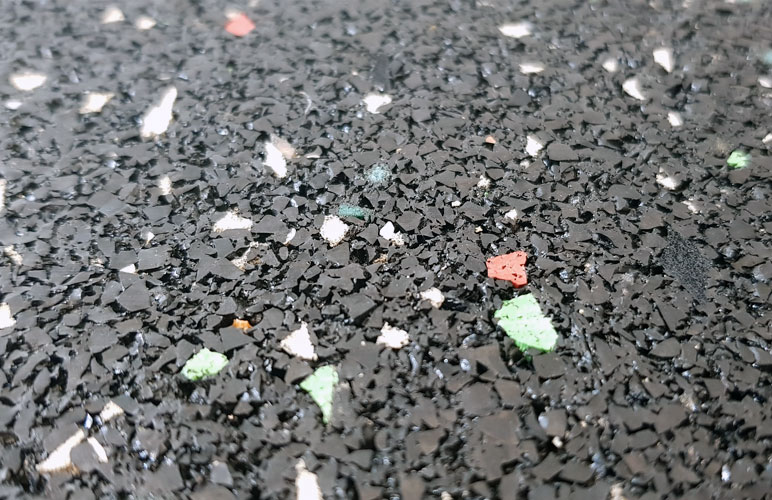

Regupol Quietlay

Now known as REGUPOL sonus quietlay

Regupol Quietlay Robust Detail E-FC-15
Regupol Quietlay (REGUPOL sonus quietlay) 5mm underscreed. Robust Detail for pre-cast concrete plank E-FC-15.

Case Study

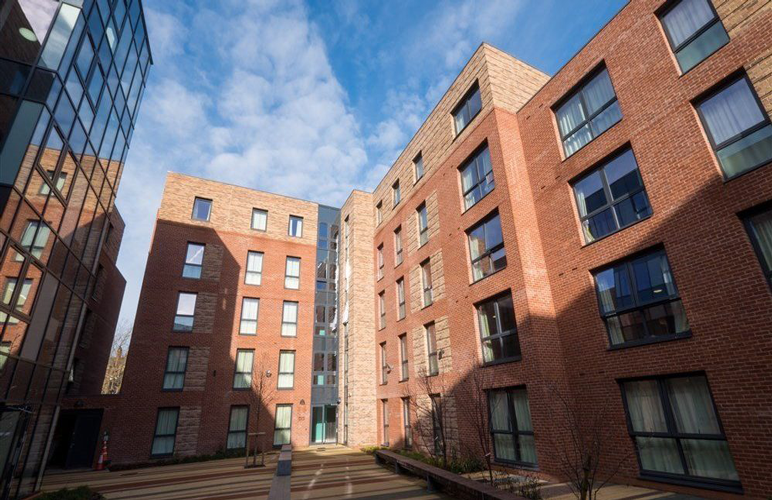

Philharmonic Court
