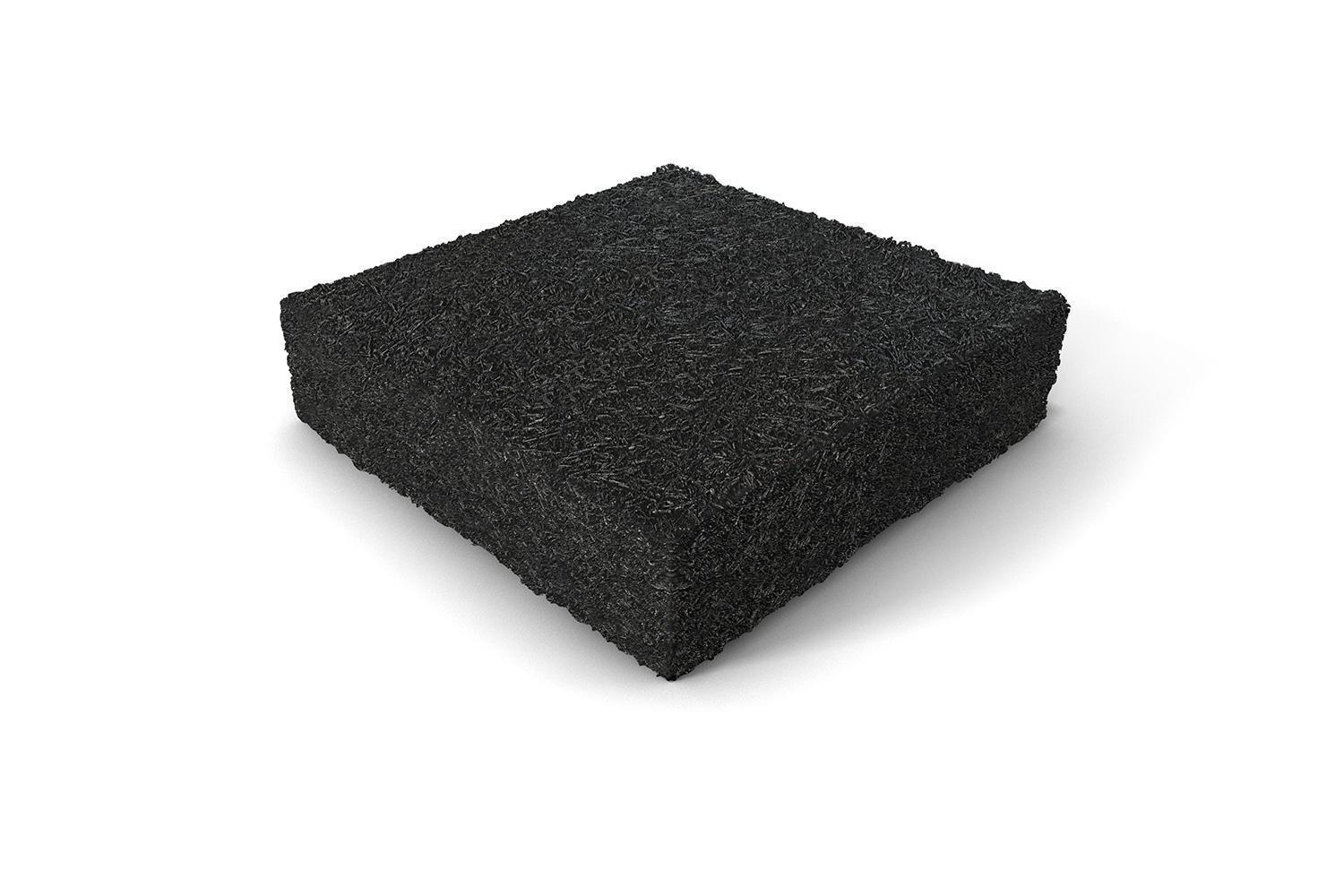

REGUPOL VIBRATION 450

Forms of delivery

Rolls, ex warehouse
Thickness: 25 and 50 mm, special thicknesses available
Length: 1,000 mm
Width: 500 mm

Customized thicknesses available on request.

Technical details

Maximum static load bearing capacity
0.120 N/mm²

Rare, short term peak loads
up to 0.180 N/mm²

Physical property	Norm	Result	Comment
Static modulus of elasticity	Based on EN 826	0.2 - 0.4 N N/mm²	Tangential modulus, see figure “Modulus of elasticity”
Dynamic modulus of elasticity	Based on DIN 53513	0.45 - 2.70 N/mm²	Depending on frequency, load and thickness, see figure “dynamic stiffness“
Mechanical loss factor	DIN 53513	0.17	Load-, amplitude- and frequency-dependent
Compression set	Based on DIN EN ISO 1856	4.1%	Measured 30 minutes after decompression with 50 % deformation / 23 °C after 72 hrs
Tensile strength	Based on DIN EN ISO 1798	0.15 N/mm²
Elongation at break	Based on DIN EN ISO 1798	40%
Tear resistance	Based on DIN ISO 34-1	1.9 N/mm
Fire behaviour	DIN 4102 DIN EN 13501-1	B2 E
Sliding friction	REGUPOL-laboratory REGUPOL-laboratory	0.5 0.6	Steel (dry) Concrete (dry)
Compression hardness	Based on DIN EN ISO 3386-2	83 kPa	Compressive stress at 25 % deformation test specimen h = 50 mm
Rebound elasticity	Based on DIN EN ISO 8307	42.7%	Dependent on thickness, test specimen h = 50 mm
Force reduction	DIN EN 14904	74%	Dependent on thickness, test specimen h = 50 mm
Ozone resistance	DIN EN ISO 17025	Cracking stage 0
