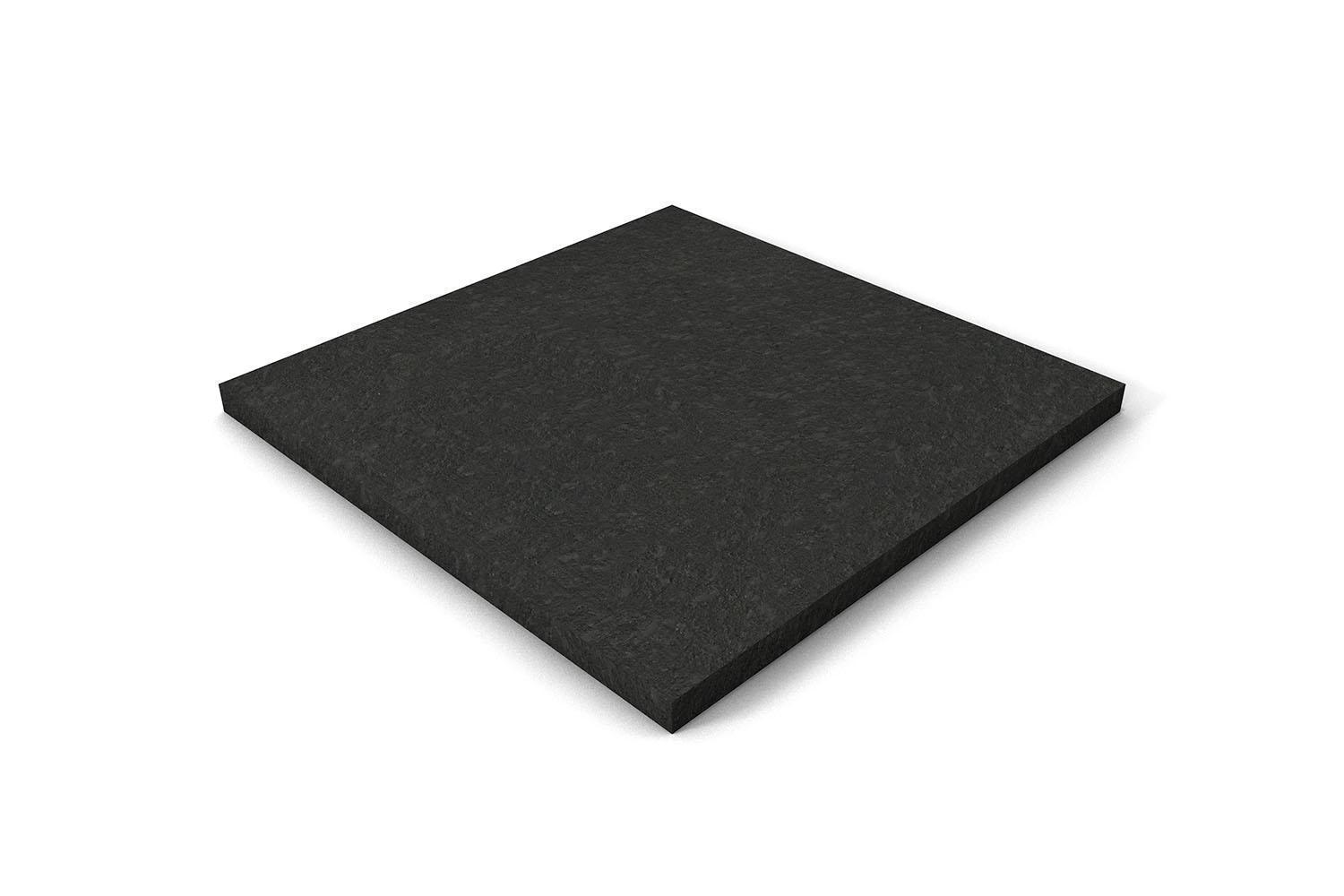

REGUPOL VIBRATION 1000
Forms of delivery
Rolls, ex warehouse
Thickness: 10 mm
Length: 8,000 mm
Width: 1,250 mm
Customized strips and pads, self-adhesive versions and
special roll lengths available on request.
Technical details
Maximum static load bearing capacity
1.500 N/mm²
Rare, short term peak loads
up to 1.750 N/mm²
| Physical property | Norm | Result | Comment |
|---|---|---|---|
| Static modulus of elasticity | Based on EN 826 | 4.0 - 11.0 N N/mm² | Tangential modulus, see figure “Modulus of elasticity” |
| Dynamic modulus of elasticity | Based on DIN 53513 | 15.0 - 45.0 N/mm² | Depending on frequency, load and thickness, see figure “dynamic stiffness“ |
| Mechanical loss factor | DIN 53513 | 0.16 | Load-, amplitude- and frequency-dependent |
| Compression set | Based on DIN EN ISO 1856 | 4.9% | Measured 30 minutes after decompression with 50% deformation / 23 °C after 72 hrs |
| Tensile strength | Based on DIN EN ISO 1798 | 2.3 N/mm² | |
| Elongation at break | Based on DIN EN ISO 1798 | 110% | |
| Tear resistance | Based on DIN ISO 34-1 | 15.0 N/mm | |
| Fire behaviour | DIN 4102 DIN EN 13501-1 | B2 E | |
| Sliding friction | REGUPOL-laboratory REGUPOL-laboratory | 0.6 0.7 | Steel (dry) Concrete (dry) |
| Compression hardness | Based on DIN EN ISO 3386-2 | 1650 kPa | Compressive stress at 25 % deformation test specimen h = 60 mm |
| Rebound elasticity | Based on DIN EN ISO 8307 | 37% | Dependent on thickness, test specimen h = 60 mm |
| Force reduction | DIN EN 14904 | 45% | Dependent on thickness, test specimen h = 60 mm |
| Ozone resistance | DIN EN ISO 17025 | Cracking stage 0 |
