REGUPOL VIBRATION 300

Download Our Data Sheet

REGUPOL VIBRATION 300

Forms of delivery

Rolls, ex warehouse

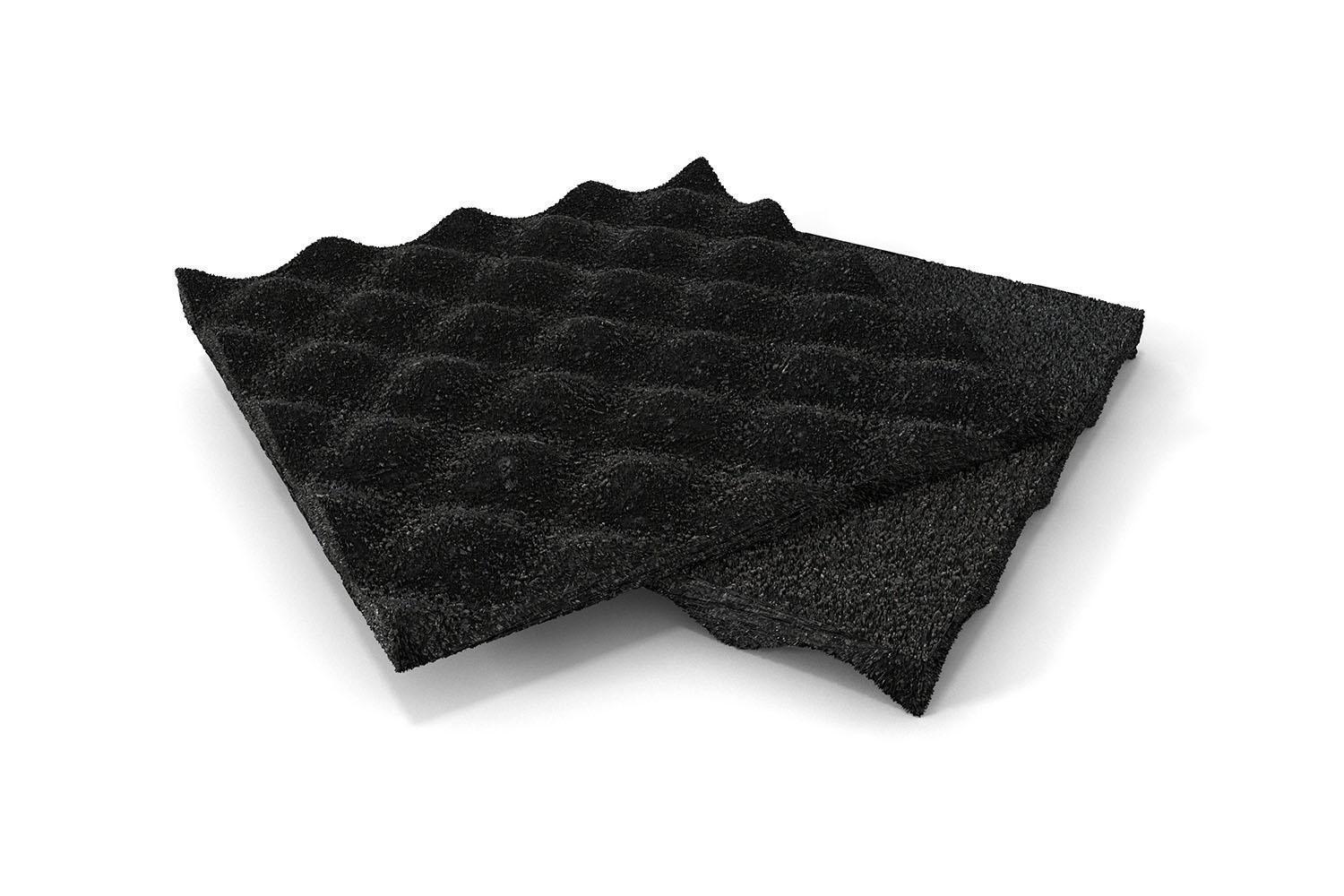

Thickness: 17 mm, dimpled
Length: 10,000 mm
Width: 1,250 mm

Customized strips and pads, self-adhesive versions and special roll lengths available on request.

Technical details

Maximum static load bearing capacity
0.050 N/mm²

Rare, short term peak loads
up to 0.080 N/mm²

Physical propertyNormResultComment
Static modulus of elasticityBased on EN 8260.1 - 0.2 N N/mm²Tangential modulus, see figure “Modulus of elasticity”
Dynamic modulus of elasticityBased on DIN 535130.2 - 1.4 N/mm²Depending on frequency, load and thickness, see figure “dynamic stiffness“
Mechanical loss factorDIN 535130.18Load-, amplitude- and frequency-dependent
Compression setBased on DIN EN ISO 18561.6%Measured 30 minutes after decompression
with 50 % deformation / 23 °C after 72 hrs
Tensile strengthBased on DIN EN ISO 17980.3 N/mm²
Elongation at breakBased on DIN EN ISO 179855%
Tear resistanceBased on DIN ISO 34-12.1 N/mm
Fire behaviourDIN 4102
DIN EN 13501-1
B2
E
Sliding frictionREGUPOL-laboratory
REGUPOL-laboratory
0.7
0.8
Steel (dry)
Concrete (dry)
Compression hardnessBased on DIN EN ISO 3386-250 kPaCompressive stress at 25 % deformation
test specimen h = 51 mm
Rebound elasticityBased on DIN EN ISO 830710%Dependent on thickness,
test specimen h = 51 mm
Force reductionDIN EN 1490473%Dependent on thickness,
test specimen h = 51 mm
Ozone resistanceDIN EN ISO 17025Cracking stage 0
