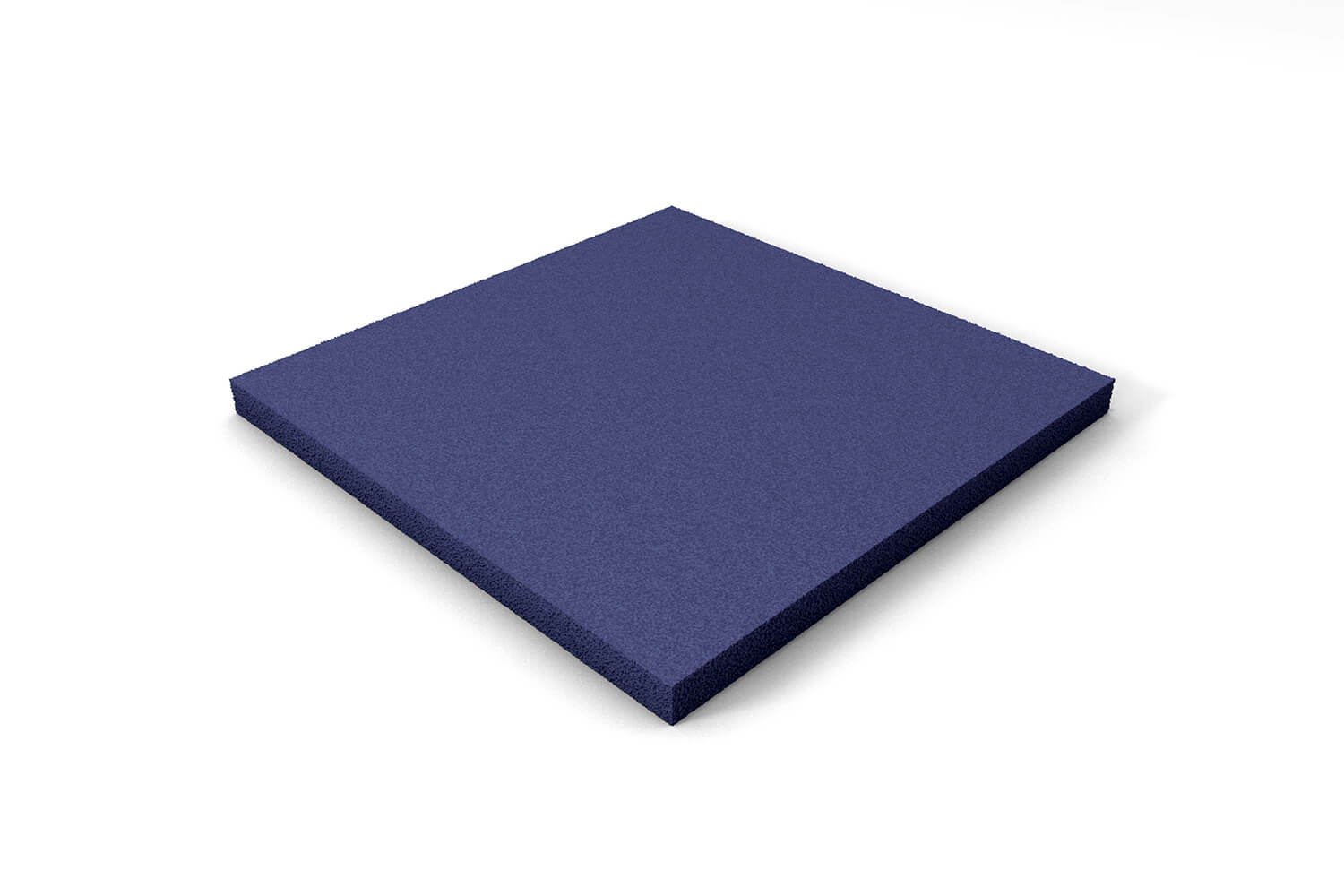

REGUFOAM® Vibration 220plus

Forms of delivery

Rolls, ex warehouse
Thickness: 12.5 and 25 mm
Length: 5,000 mm
Width: 1,500 mm

Customized strips and pads, self-adhesive versions and special roll lengths available on request.

Technical details

Maximum static load bearing capacity
0.028 N/mm²

Maximum dynamic load bearing capacity for intermitted loadings
0 to 0.040 N/mm²

Rare, short term peak loads
up to 0.900 N/mm²

Physical property	Norm	Result	Comment
Static modulus of elasticity	Based on EN 826	0.15 - 0.35 N/mm²	Tangential modulus, see figure “Modulus of elasticity”
Dynamic modulus of elasticity	Based on DIN 53513	0.35 - 0.72 N/mm²	Depending on frequency, load and thickness,see figure “dynamic stiffness“
Mechanical loss factor	DIN 53513	0.22	Load-, amplitude- and frequency-dependent
Compression set	Based on DIN EN ISO 1856	2.3%	Measured 30 minutes after decompression with 50% deformation / 23 °C after 72 hrs
Tensile strength	Based on DIN EN ISO 1798	0.5 N/mm²
Elongation at break	Based on DIN EN ISO 1798	180%
Tear resistance	Based on DIN ISO 34-1	2.1 N/mm²
Fire behaviour	DIN 4102 DIN EN 13501-1	B2 E
Sliding friction	REGUPOL-laboratory REGUPOL-laboratory	0.7 0.8	Steel (dry) Concrete (dry)
Compression hardness	Based on DIN EN ISO 3386-2	39 kPa	Compressive stress at 25 % deformation test specimen h = 25 mm
Rebound elasticity	Based on DIN EN ISO 8307	47%	Dependent on thickness, test specimen h = 25 mm
Force reduction	DIN EN 14904	69%	Dependent on thickness, test specimen h = 25 mm
