Kinetics IsoGrid

Quick connect ceiling hanger

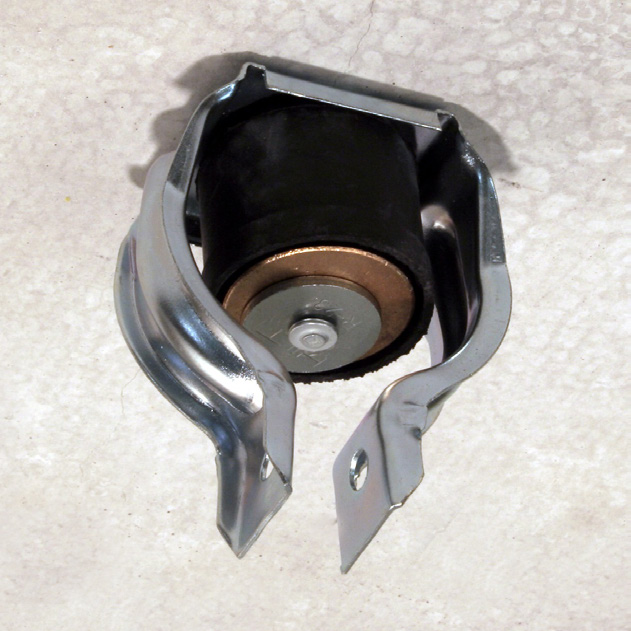

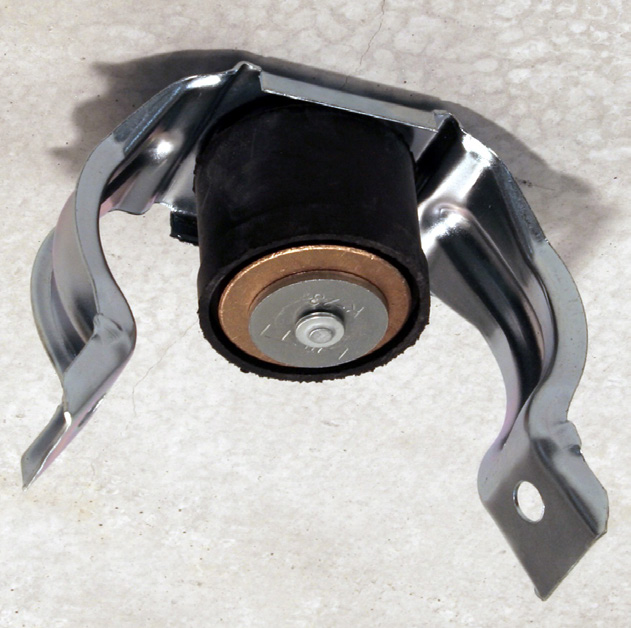

Dual Deflection Neoprene Isolator The IsoGrid Quick Connect Ceiling Hanger utilizes a specially designed Dual Deflection neoprene isolator with internal bulge areas. These internal bulge areas allow the Dual Deflection neoprene element to achieve greater deflections than similarly sized elements while maintaining lateral stability. Greater deflection translates to greater performance for your noise control ceilings.

  • Dramatic labour savings over conventional ceiling hangers
  • Meet STC and IIC requirements while maximizing ceiling height
  • Various attachment methods allow for installation on a variety of ceiling structures
  • Quick and easy installation
  • Known deflection rates ensure performance under design loads
  • Bronze core prevents poor acoustic performance due to over compression or accidental short circuiting of the transmission pathway

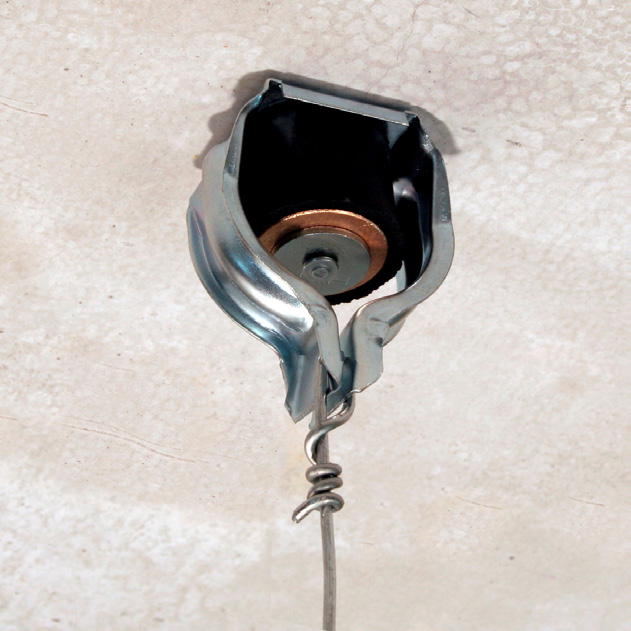

Secured to concrete, metal deck, or structural framing, IsoGrid Quick Connect Ceiling Hanger incorporates a neoprene element to resiliently support one or more layers of gypsum board. Attachment can be made directly into concrete by powder-actuated fastener through the hanger (where loads and regulations permit). Wire is then tied to the bottom of the hanger bracket through the built-in mounting holes. Gypsum board is installed using either drywall ceiling grid or cold rolled and hat channel.
  • Hanger brackets are bright zinc plated
  • Isolation hangers have a typical overload of 50%
  • Hanger brackets will carry (5) times overload without failure
