Acoustic Damping Sheet for Industrial Soundproofing Applications

Type DS Acoustic Damping Sheet

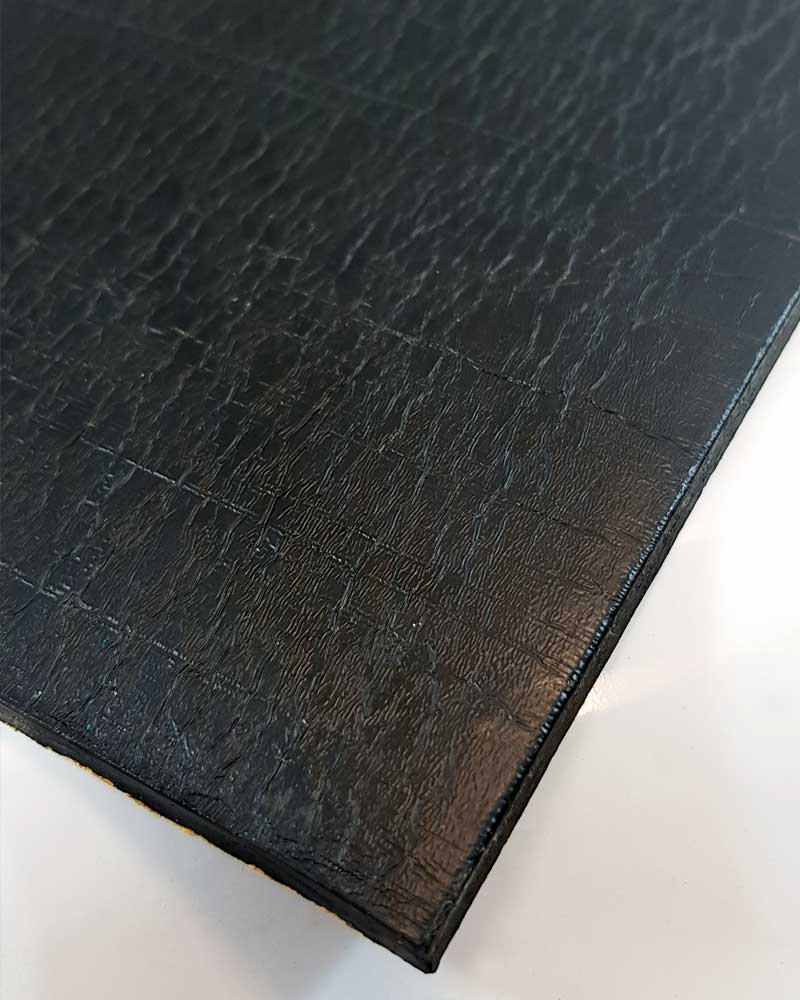

Type DS Acoustic Damping Sheet is a bitumen enriched self adhesive backed material manufactured from a mixture of bitumen plasticizers and elastomers.

The adhesive backing is protected by a silicon release paper that permits easy storing and stacking. Type DS Acoustic Damping Sheet is black in colour (DS13 dark grey). Type DS Acoustic Damping Sheet is a bitumen enriched self adhesive backed material manufactured from a mixture of bitumen plasticizers and elastomers.

Technical Information for Type DS Acoustic Damping Sheet

Density1.8 to 2.0 gr/cc
Service temperatureType 1 -20˚C to +80˚C 24hr in vertical
position, continous in Horizonta position
Type 2 Up to 100˚C
DS13 -30˚C to +90˚C
Flexibility at>10˚CType 1 20mm diameter cylinder
Type 2 60mm diameter cylinder
Adhesive instant tack
(ASTM D 3121)
Type 1 Instant Tack under 7cm IOL Q51
Adhesive peel at 90degrees after 2hrs over
5N/cm Av ISO 4578
Type 2 Adhesive peel at 20˚C over 4N/cm
Adhesive cohesion
(FINAT 8)
>4 hours
Shelf lifeType 1 6 months @ 10˚C to 35˚C
avoid direct sunlight
Type 2 3 months @ 18˚C to 35˚C

Type DS Acoustic Damping Sheet Applications

  • Sound proofing of formed steel or aluminium panels and cabinets.
  • Steel panels in the automotive industry and agricultural machinery.
  • Widely used in air-conditioning ductwork and the white goods industry.
  • Used in conjunction with CMS Danskin Acoustics range of SuperLag
    lagging products to dramatically enhance acoustic performance.

The Benefits Of Type DS Acoustic Damping Sheet

  • Available in sheet form.
  • Flexible and easily cut.
  • Easy to handle and install.
  • Available in four standard weights.
  • Provides a cost effective sound proofing solution.
