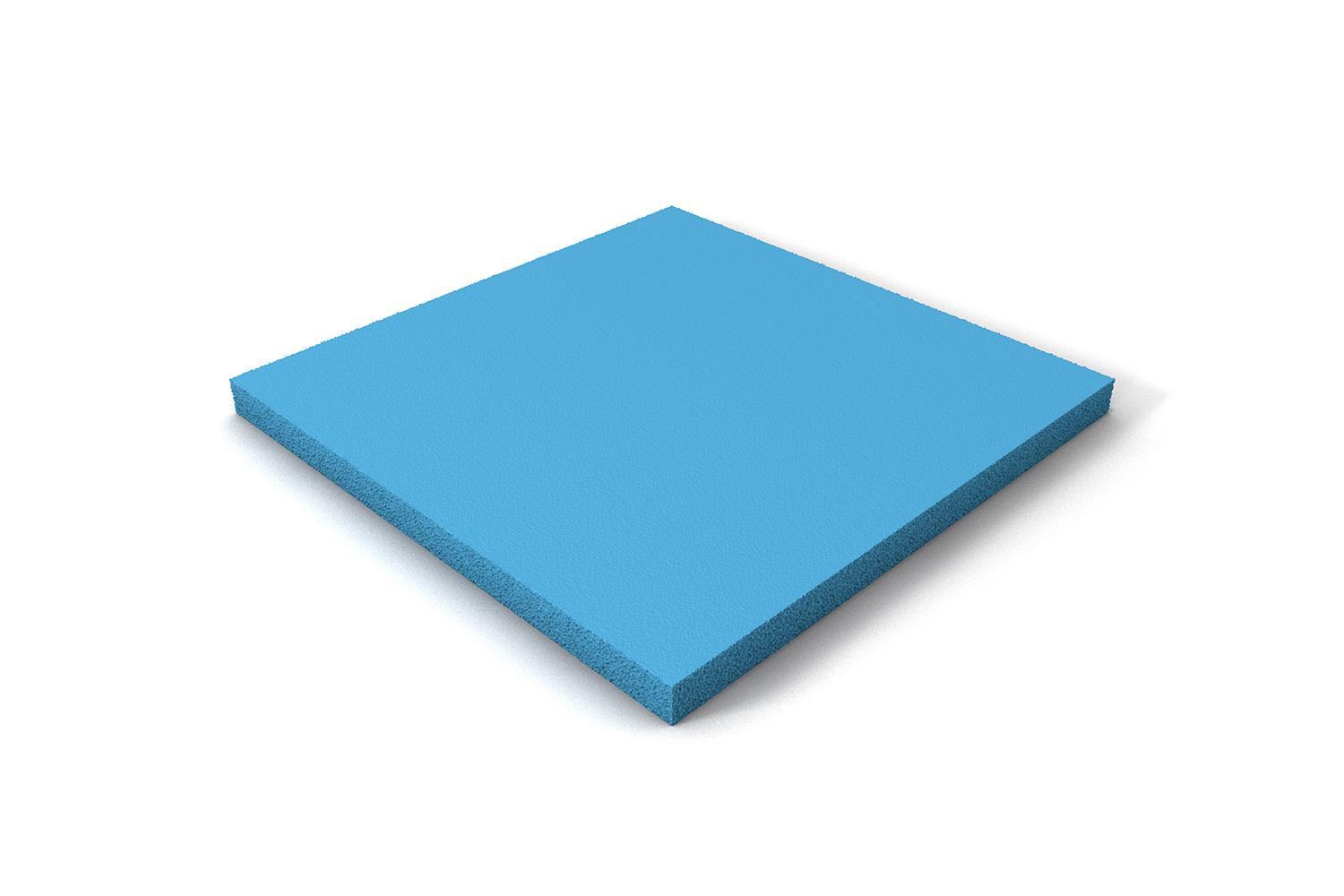

REGUFOAM® Vibration 270plus
Download Our Data Sheet

REGUFOAM® Vibration 270plus

Forms of delivery

Rolls, ex warehouse
Thickness: 12.5 and 25 mm
Length: 5,000 mm
Width: 1,500 mm

Customized strips and pads, self-adhesive versions and special roll lengths available on request.

Technical details

Maximum static load bearing capacity
0.042 N/mm²

Maximum dynamic load bearing capacity for intermitted loadings
0 to 0.062 N/mm²

Rare, short term peak loads
up to 1.200 N/mm²

Physical propertyNormResultComment
Static modulus of elasticityBased on EN 8260.25 - 0.45 N/mm²Tangential modulus, see figure “Modulus of elasticity”
Dynamic modulus of elasticityBased on DIN 535130.60 - 1.05 N/mm²Depending on frequency, load and thickness,see figure “dynamic stiffness“
Mechanical loss factorDIN 535130.2Load-, amplitude- and frequency-dependent
Compression setBased on DIN EN ISO 18563.2%Measured 30 minutes after decompression with 50% deformation / 23 °C after 72 hrs
Tensile strengthBased on DIN EN ISO 17980.9 N/mm²
Elongation at breakBased on DIN EN ISO 1798210%
Tear resistanceBased on DIN ISO 34-14.5 N/mm²
Fire behaviourDIN 4102
DIN EN 13501-1
B2
E
Sliding frictionREGUPOL-laboratory
REGUPOL-laboratory
0.7
0.8
Steel (dry)
Concrete (dry)
Compression hardnessBased on DIN EN ISO 3386-263 kPaCompressive stress at 25 % deformation test specimen h = 25 mm
Rebound elasticityBased on DIN EN ISO 830738%Dependent on thickness,
test specimen h = 25 mm
Force reductionDIN EN 1490470%Dependent on thickness,
test specimen h = 25 mm
