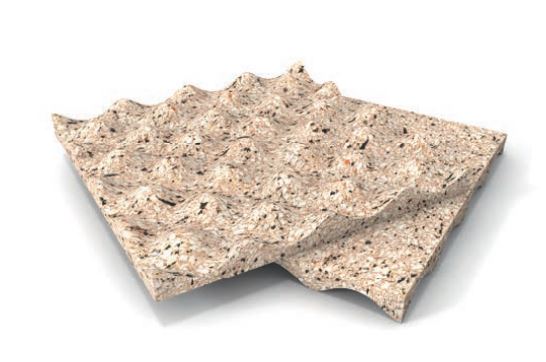

REGUPOL VIBRATION 200

Forms of delivery

Rolls, ex warehouse
Thickness: 17mm, dimpled
Length: 10,000 mm
Width: 1,250 mm

Customized strips and pads, self-adhesive versions and special roll lengths available on request

Technical details

Maximum static load bearing capacity
0.020 N/mm²

Rare, short term peak loads
up to 0.050 N/mm²

Physical property	Norm	Result	Comment
Static modulus of elasticity	Based on EN 826	0.02 - 0.08 N N/mm²	Tangential modulus, see figure “Modulus of elasticity”
Dynamic modulus of elasticity	Based on DIN 53513	0.05 - 0.38 N/mm²	Depending on frequency, load and thickness, see figure “dynamic stiffness“
Mechanical loss factor	DIN 53513	0.22	Load-, amplitude- and frequency-dependent
Compression set	Based on DIN EN ISO 1856	3.1%	Measured 30 minutes after decompression with 50% deformation / 23 °C after 72 hrs
Tensile strength	Based on DIN EN ISO 1798	0.12 N/mm²
Elongation at break	Based on DIN EN ISO 1798	40%
Tear resistance	Based on DIN ISO 34-1	1.0 N/mm
Fire behaviour	DIN 4102 DIN EN 13501-1	B2 E
Sliding friction	REGUPOL-laboratory REGUPOL-laboratory	0.7 0.8	Steel (dry) Concrete (dry)
Compression hardness	Based on DIN EN ISO 3386-2	14 kPa	Compressive stress at 25 % deformation test specimen h = 51 mm
Rebound elasticity	Based on DIN EN ISO 8307	14%	Dependent on thickness, test specimen h = 51 mm
Force reduction	DIN EN 14904	73%	Dependent on thickness, test specimen h = 51 mm
