Quietlay Robust Detail Screed Isolation

Now known as REGUPOL sonus quietlay

Regupol Quietlay (REGUPOL sonus quietlay) Robust Detail Screed Isolation Material For Pre-Cast Units.

Regupol Quietlay (REGUPOL sonus quietlay) is a cost effective rubberbound robust detail screed isolation. It is  manufactured from recycled materials and forms part of the globally renowned range of Regupol.

Regupol Quietlay (REGUPOL sonus quietlay) robust detail screed isolation is the core proprietary product as part of Robust Detail E-FC-15™. Regupol Quietlay (REGUPOL sonus quietlay) is quick and easy to install. It has no requirement for separate perimeter strips. This saves time and labour costs.

Download Our Product Data Sheet

Benefits

Main Features

  • Robust Detail approved E-FC-15™
  • No need for separate perimeter strips
  • Supplied in easy-to-handle sheets
  • 3 Credits Entitlement for Code for Sustainable Homes
    (with Pre-Completion Testing)

Additional Benefits

  • Offers long-term performance without collapse or “bottoming out” under high point loads
  • Minimises construction heights
  • Mildew and moisture proof
  • Zero Global Warming Potential (GWP) and Zero Ozone Depletion Potential (ODP)
  • When used with a sand/cement screed there is no requirement to use a DPM (see diagrams under ‘Installation’ tab above

What is a Robust Detail?

A Robust Detail is an independently awarded UKAS-accredited certificate. It ensures a particular product when installed in accordance with RD documentation will consistently exceed the requirements of Part E of the Building Regulations. Because the product has been pre-tested to a higher standard there is no need for pre-completion sound testing.

Full information is available from the Robust Detail – www.robustdetails.com. Please refer to E-FC-15.

Applications

Regupol Quietlay (REGUPOL sonus quietlay) robust detail screed isolation is specifically designed for the residential and student accommodation markets as a superior cost-effective acoustic underscreed material.

It is particularly suited to the following developments:

  • Apartments
  • Student Accommodation

Specification

Regupol QuietLay (REGUPOL sonus quietlay) Acoustic Under Screed Insulation Physical Information

Sheet Length
Sheet Width
Sheet Thickness
2250mm
1150mm
5mm

Regupol QuietLay (REGUPOL sonus quietlay) Acoustic Under Screed Insulation Technical Information

Density
Tensile Strength
(DIN 53571)
Thermal
Conductivity
Elongation at
Break
Temperature
Resistance
755kg/m3
approx. 0.55N/mm2
approx. 0.14W/mK
approx. 78%
-40ºC to +115ºC

Installation

Quietlay Robust Detail Screed Isolation Installation Video

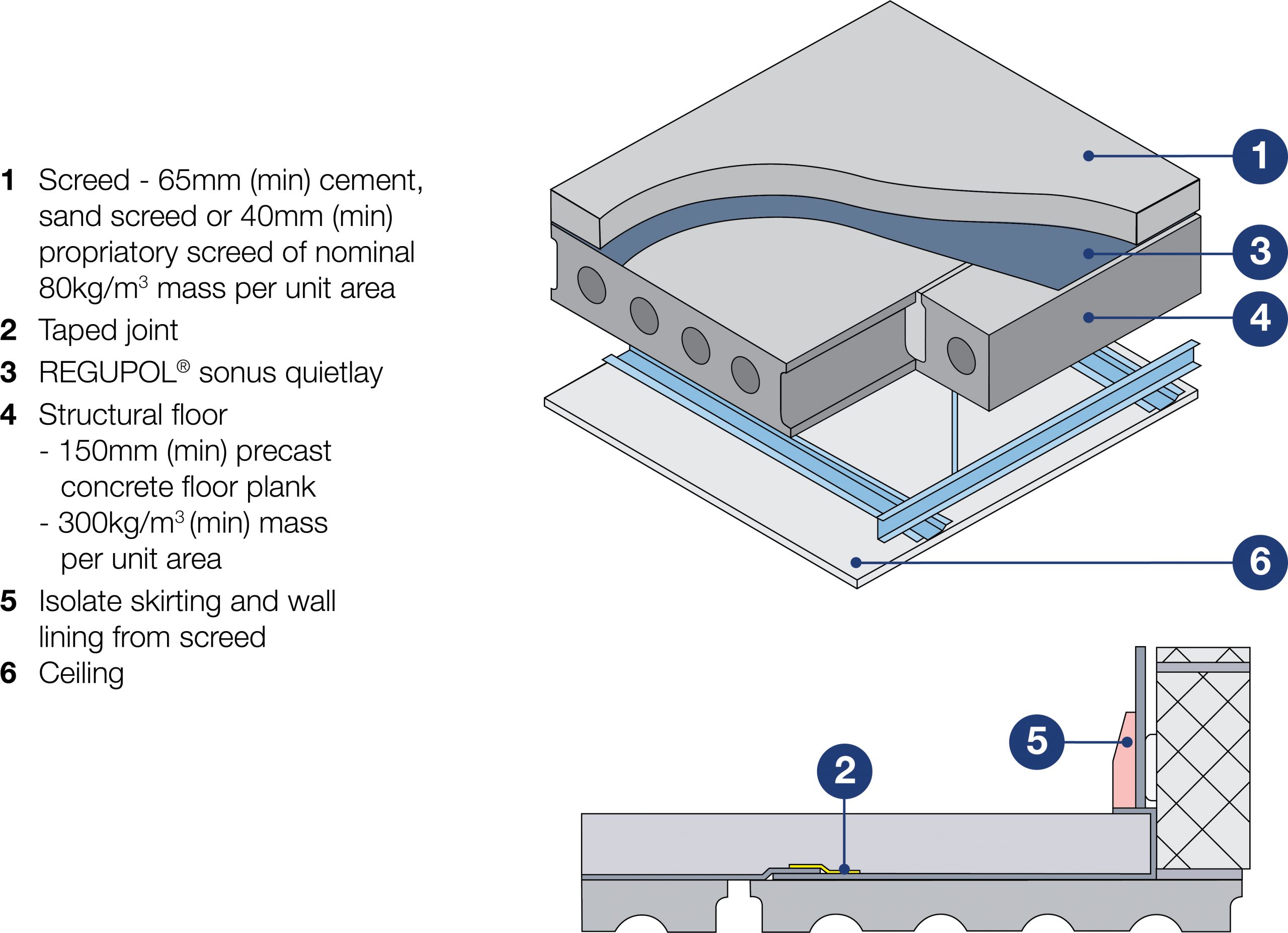

Regupol QuietLay (REGUPOL sonus quietlay) Acoustic Under Screed Insulation without DPM – for use with Sand/Cement Screeds Only

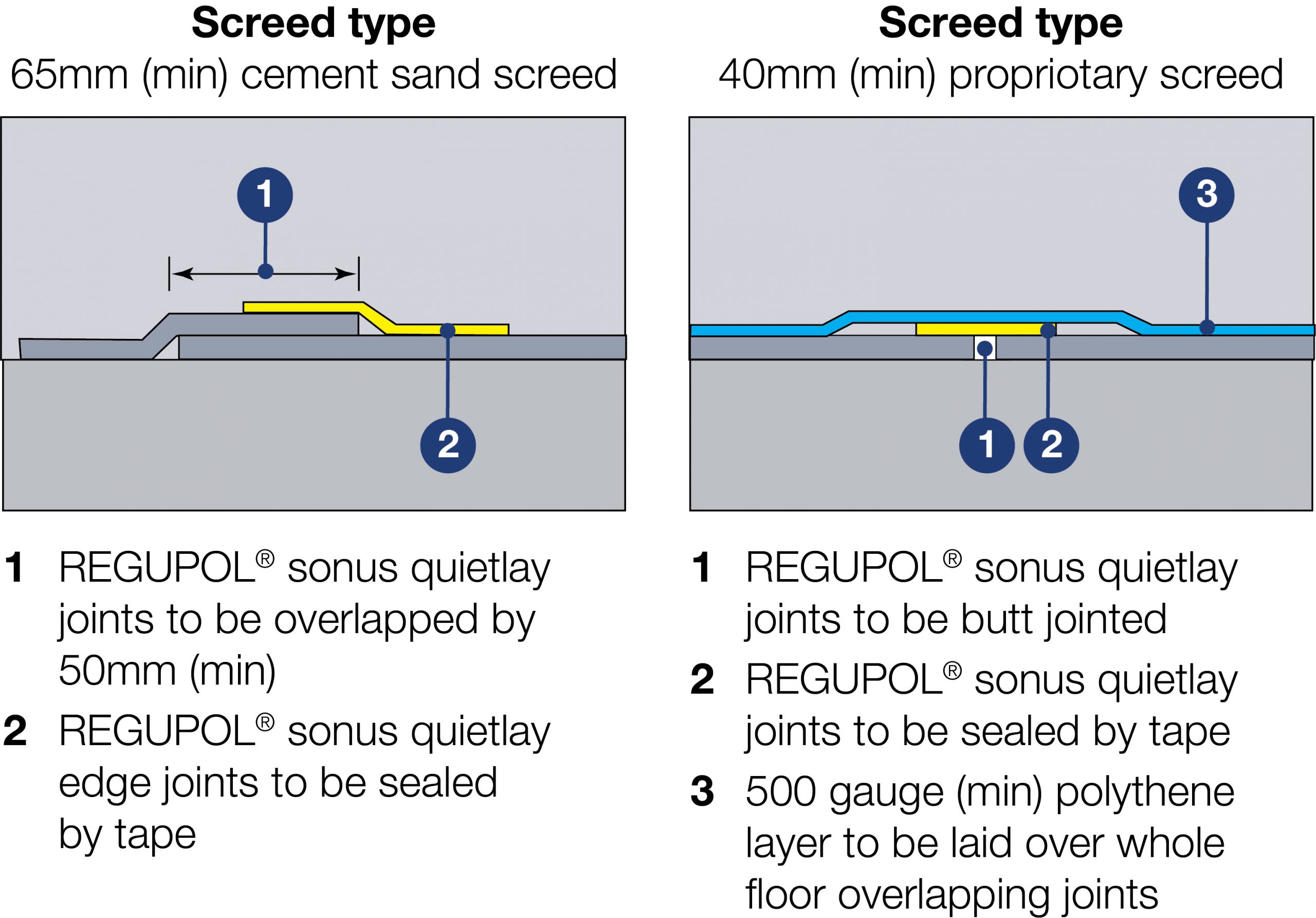

Regupol QuietLay (REGUPOL sonus quietlay) Acoustic Under Screed Insulation with DPM – for Free-Flowing Screeds

Adhesive and DPM

REGUPOL adhesive 46-101 Acoustic Adhesive

REGUPOL-adhesive-46-101

REGUPOL adhesive 46-101 represents the very latest development in Hybrid Polymer technology and has been formulated to give the highest levels of performance in terms of bond strength, versatility across many combinations of materials, improved acoustic performance in acoustic installations, resistance to stresses, fast curing speed and ease and cleanliness of use.

Download Our Technical Data Sheet

REGUPOL adhesive 43-105 Acrylic Adhesive for Vinyl and Linoleum

REGUPOL-adhesive-43-105

REGUPOL adhesive 43-105 is a solvent free acrylic emulsion-based adhesive, for bonding many sound insulation materials to common sub-floors and many floor finishes to the insulation. This easy to spread adhesive, with a long open time, provides early tack and minimum slip, quickly building to a strong permanent bond. It is non-staining and has excellent resistance to plasticiser migration.

Download Our Technical Data Sheet
