Regupol Sonus Curve 25

Regupol Sonus Curve 25 is a high performance impact and airborne sound insulating underlayment for various floor structures under screed beds and floating floors.

Applications

Under cement or gypsum screed beds, concrete or timber toppings and other floating floor solutions for both residential and commercial use, e. g. gymnasiums, cinemas, theatres or mechanical rooms.

Certification

Cradle to Cradle Certified® is a registered trademark
of the Cradle to Cradle Products Innovation Institute.
Manufacturer EPD available upon request.
Green Circle Certified.

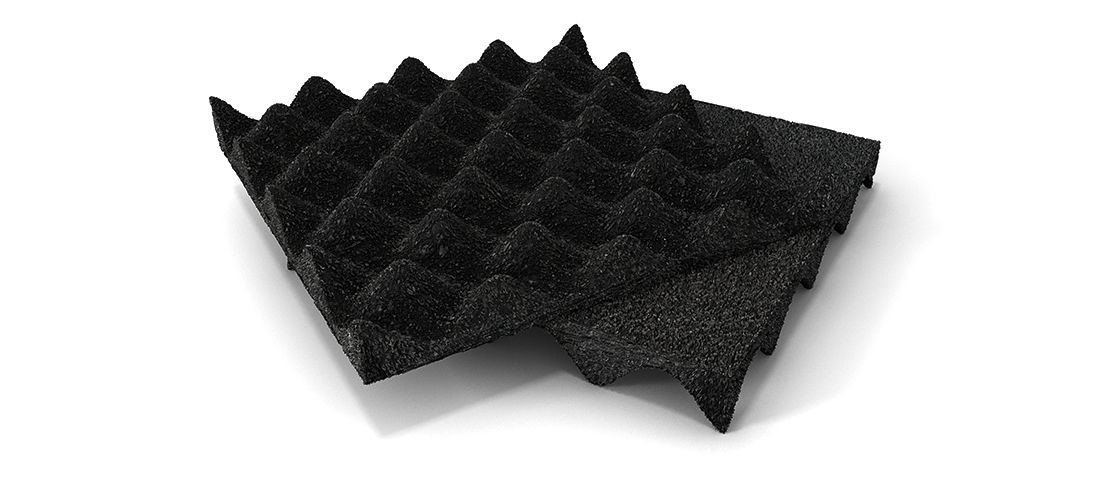

Material

PUR-bonded recycled rubber fibres
Dimpled profile on the underside

Features and Benefits

Excellent impact and airborne performance
Offers long term performance without collapse or “bottoming” out under high point loads
Resistant to ageing and deformation
Quick and easy to install
Mildew and moisture proof
Manufactured using recycled materials – the proportion of pre and post-consumer content is listed in the products Green Circle Certificate which is available upon request.
Manufacturing facility certified to ISO 9001, ISO 45001, ISO 14001, ISO 50001

Physical Information

Roll width	1250mm
Roll Length	8.5m
Material Thickness	25mm
Weight per roll / per m²	†102.1kg †9.2kg/m²
Material Composition	Recycled Rubber
†Approximate Values
