‘weberfloor acoustic systems’ can be used to meet challenging acoustics targets across both new construction and refurbishment projects, including residential, healthcare, commercial and leisure schemes. Aimed at making acoustic floor system specification more straightforward for architects, acousticians, contractors and installers who are designing and delivering developments where controlling impact sound is required or desired, the new weberfloor acoustic systems work with most floor finishes, such as LVT, sheet vinyl, laminate, timber, ceramic tiles, and carpet.
Acoustic Flooring Solutions
Meeting challenging acoustics targets across both new construction and refurbishment projects.
REGUPOL sonus core 3
Cost-effective rubber bound under screed material specifically introduced for the PCT (Pre-Completion Test) market for the isolation of all screed types.

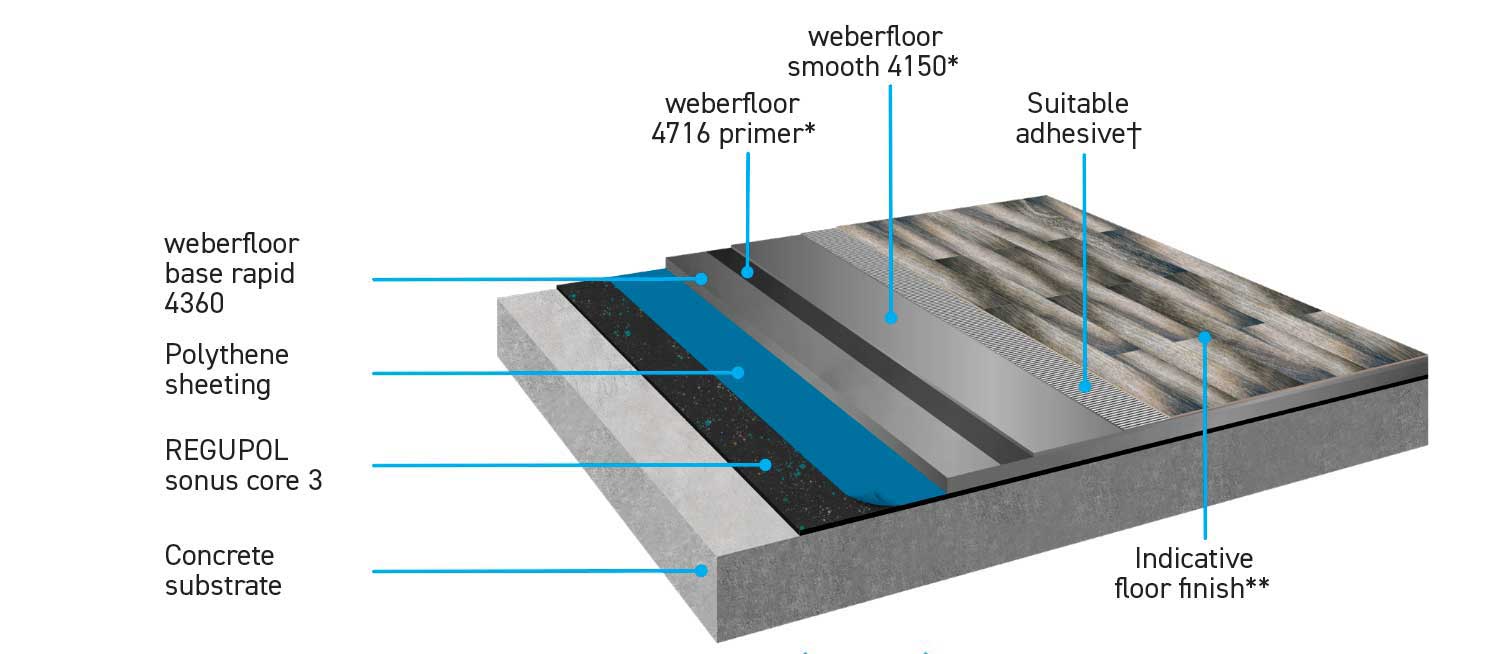

weberfloor acoustic system (SC3)
| REGUPOL Product | Weber Product | Impact Performance ALw | Weber Product | Impact Performance ALw |
|---|---|---|---|---|
| REGUPOL sonus core 3 | 30 mm weberfloor base rapid 4360 | 22dB | 40 mm weberfloor base rapid 4360 | 20dB |
*a levelling compound may not be required, contact the Weber Technical Team for more information
† contact Weber Technical Team for suitable adhesive options
**suitable for use with tiles, vinyl, carpet, wood floor, or laminates etc

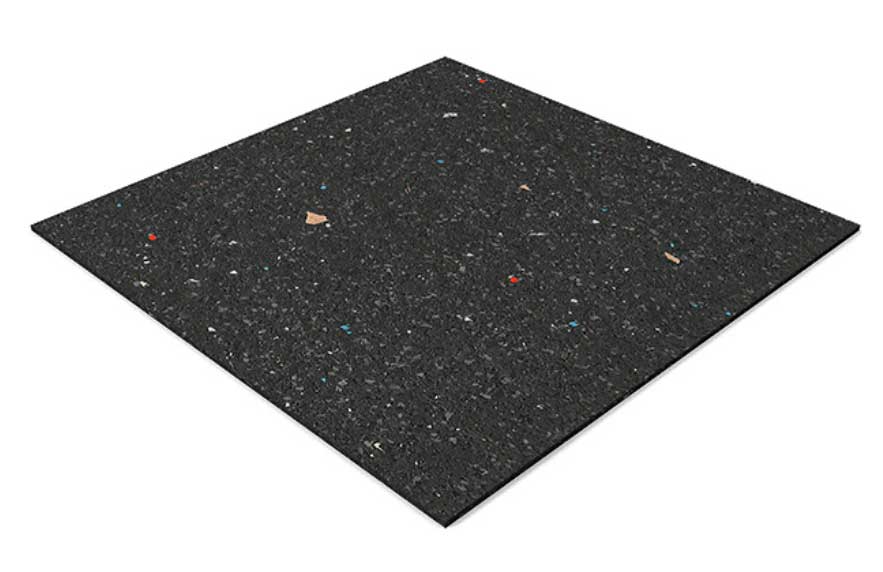

REGUPOL sonus core 5
Cost-effective rubber bound under screed material specifically introduced for the PCT (Pre-Completion Test) market for the isolation of all screed types.

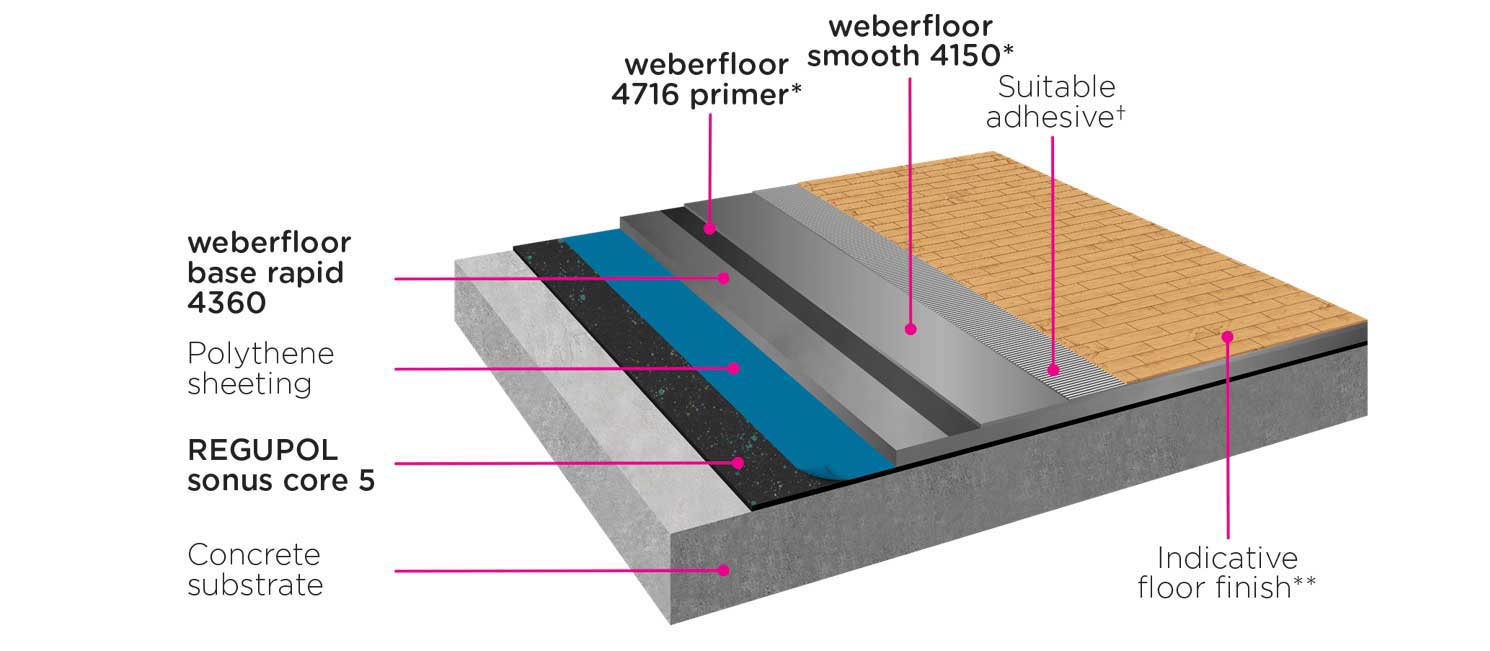

weberfloor acoustic system (SC5)
| REGUPOL Product | Weber Product | Impact Performance ALw | Weber Product | Impact Performance ALw |
|---|---|---|---|---|
| REGUPOL sonus core 5 | 30 mm weberfloor base rapid 4360 | 21dB | 40 mm weberfloor base rapid 4360 | 20dB |
*a levelling compound may not be required, contact the Weber Technical Team for more information
† contact Weber Technical Team for suitable adhesive options
**suitable for use with tiles, vinyl, carpet, wood floor, or laminates etc

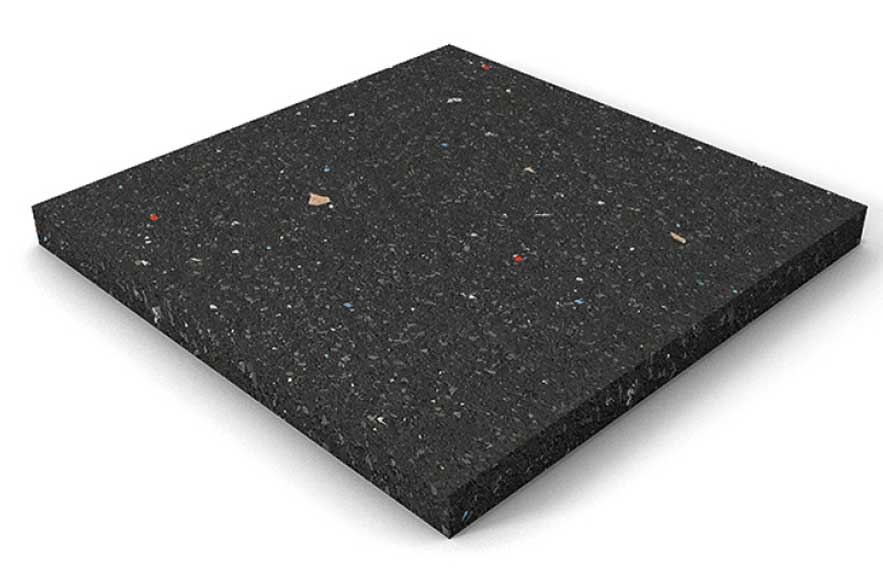

REGUPOL sonus core 10-S
A recycled crumb product specifically developed for heavy load bearing areas where acoustic performance is critical. A high performing screed isolation solution, REGUPOL sonus core 10-S delivers significant load bearing capacity.

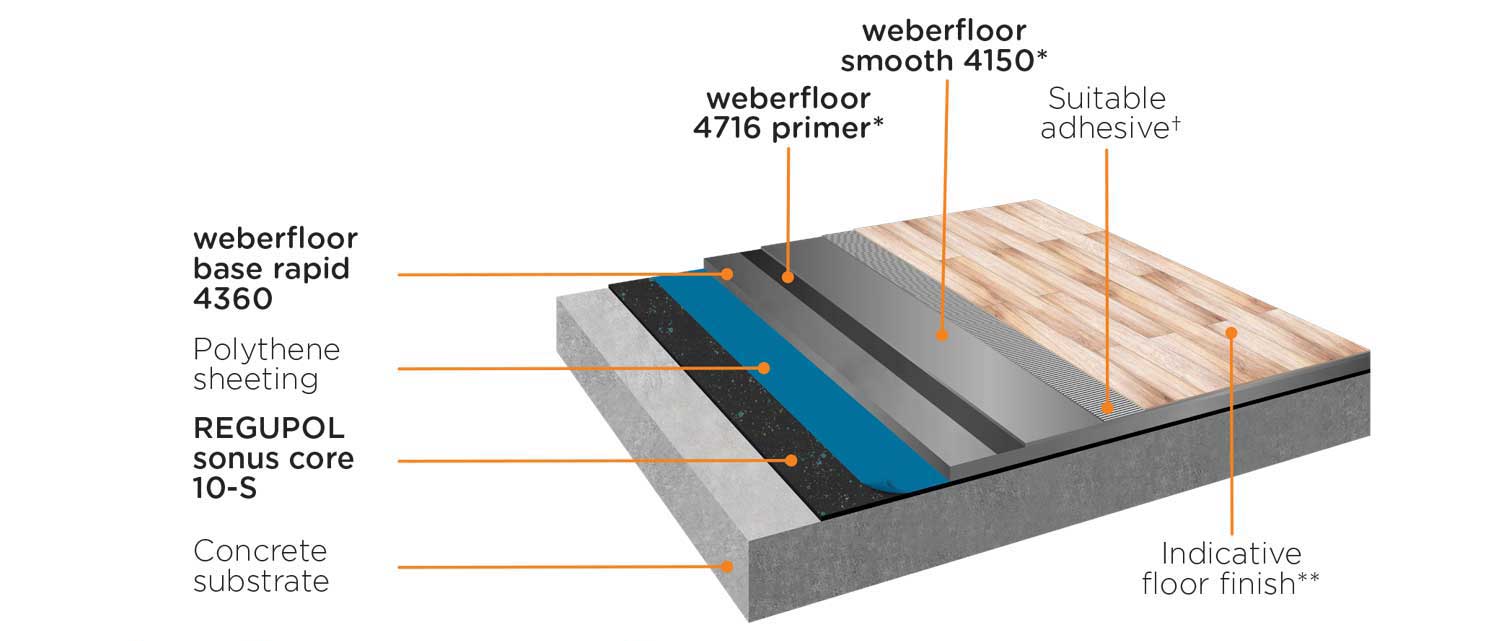

weberfloor acoustic system (SC10-S)
| REGUPOL Product | Weber Product | Impact Performance ALw | Weber Product | Impact Performance ALw |
|---|---|---|---|---|
| REGUPOL sonus core 10-S | 30 mm weberfloor base rapid 4360 | 22dB | 40 mm weberfloor base rapid 4360 | 25dB |
*a levelling compound may not be required, contact the Weber Technical Team for more information
† contact Weber Technical Team for suitable adhesive options
**suitable for use with tiles, vinyl, carpet, wood floor, or laminates etc
REGUPOL sonus core 15-S
A recycled crumb product specifically developed for heavy load bearing areas where acoustic performance is critical. A high performing screed isolation solution, REGUPOL sonus core 15-S delivers significant load bearing capacity.
weberfloor acoustic system (SC15-S)
| REGUPOL Product | Weber Product | Impact Performance ALw | Weber Product | Impact Performance ALw |
|---|---|---|---|---|
| REGUPOL sonus core 15-S | 30 mm weberfloor base rapid 4360 | 25dB | 40 mm weberfloor base rapid 4360 | 26dB |
*a levelling compound may not be required, contact the Weber Technical Team for more information
† contact Weber Technical Team for suitable adhesive options
**suitable for use with tiles, vinyl, carpet, wood floor, or laminates etc

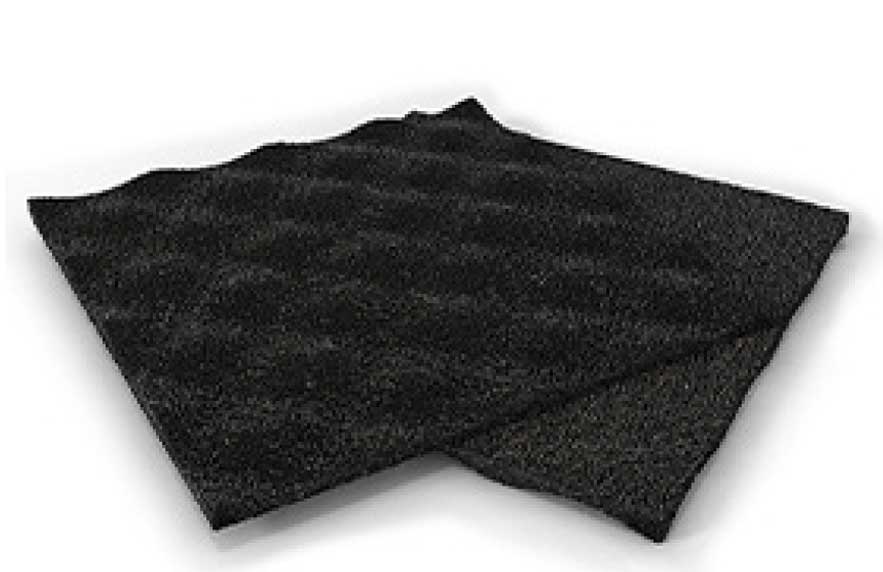

REGUPOL sonus curve 8
Recycled tyre crumb product designed to isolate screeds from the main structure of the building, reducing impact energy generated by general footfall. REGUPOL sonus curve 8 offers enhanced acoustic performance at loads up to and including 30 kN/m² and having a dimpled surface on one side increases air movement, further aiding overall performance.
weberfloor acoustic system (SCV8)
| REGUPOL Product | Weber Product | Impact Performance ALw | Weber Product | Impact Performance ALw |
|---|---|---|---|---|
| REGUPOL sonus curve 8 | 30 mm weberfloor base rapid 4360 | 27dB | 40 mm weberfloor base rapid 4360 | 27dB |
*a levelling compound may not be required, contact the Weber Technical Team for more information
† contact Weber Technical Team for suitable adhesive options
**suitable for use with tiles, vinyl, carpet, wood floor, or laminates etc
REGUPOL sonus curve 17
High load bearing screed isolation solution, manufactured from recycled crumb, delivering effective isolation and impact sound insulation, even under heavy loads. REGUPOL sonus curve 17 is often the preferred choice for premium developments and those where superior acoustic performance is critical.

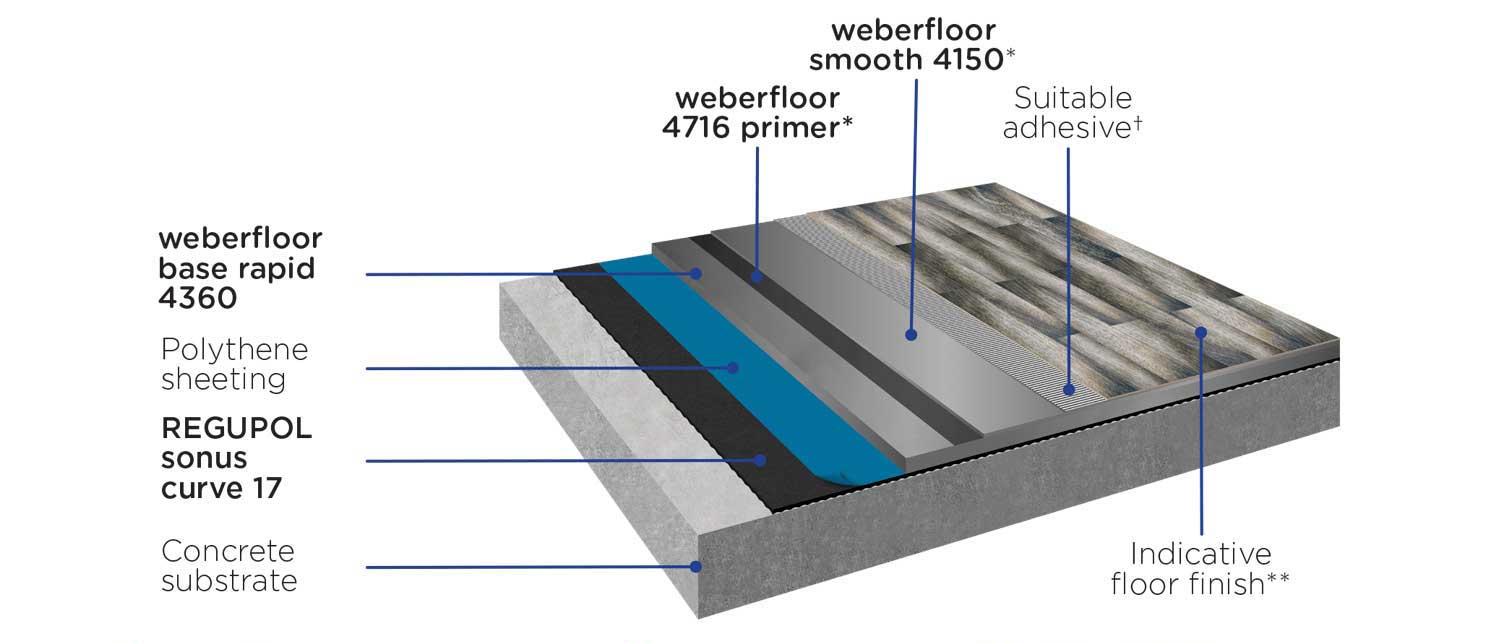

weberfloor acoustic system (SCV17)
| REGUPOL Product | Weber Product | Impact Performance ALw | Weber Product | Impact Performance ALw |
|---|---|---|---|---|
| REGUPOL sonus curve 17 | 30 mm weberfloor base rapid 4360 | 30dB | 40 mm weberfloor base rapid 4360 | 31dB |
*a levelling compound may not be required, contact the Weber Technical Team for more information
† contact Weber Technical Team for suitable adhesive options
**suitable for use with tiles, vinyl, carpet, wood floor, or laminates etc
REGUPOL sonus multi 530
Impact sound insulating underlayment for various floor structures under LVT, sheet vinyl, laminate, timber
flooring, ceramic tiles, carpet & carpet tiles.
weberfloor acoustic system (SM530)
| REGUPOL Product | Weber Product | Floor Finish | Impact Performance ALw |
|---|---|---|---|
| REGUPOL sonus multi 530 | 5 mm weberfloor bag & bottle 4000 & 30 mm weberfloor base rapid 4360 | N/A | 17dB |
| REGUPOL sonus multi 530 | 5 mm weberfloor bag & bottle 4000 & 30 mm weberfloor base rapid 4360 | Carpet Tiles (5.5 mm) | 17dB |
| REGUPOL sonus multi 530 | 5 mm weberfloor bag & bottle 4000 & 30 mm weberfloor base rapid 4360 | Ceramic Tiles (8.5 mm) | 19dB |
| REGUPOL sonus multi 530 | 5 mm weberfloor bag & bottle 4000 & 30 mm weberfloor base rapid 4360 | LVT Plank (2 mm) | 17dB |
| REGUPOL sonus multi 530 | 5 mm weberfloor bag & bottle 4000 & 30 mm weberfloor base rapid 4360 | Sheet Vinyl (2 mm) | 19dB |
Tests carried out in accordance with BS EN ISO 10140-3: 2021. SRL Test Report No. 82457-SRL-RP-XT-002-P1 (available upon request)
*suitable for use with tiles, vinyl, carpet, wood floor, or laminates etc
† contact Weber Technical Team for suitable adhesive options

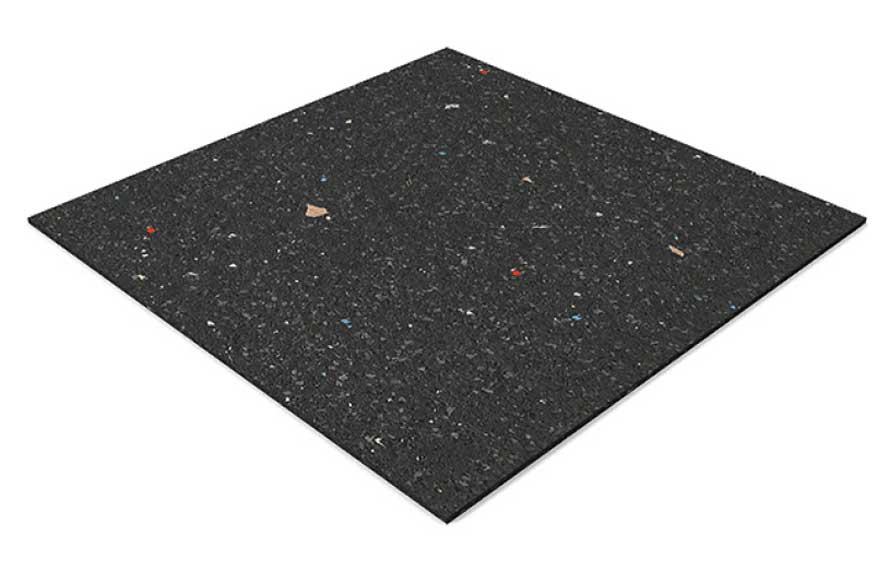

REGUPOL sonus multi 545
Impact sound insulating underlayment for various floor structures under LVT, sheet vinyl, laminate, timber
flooring, ceramic tiles, carpet & carpet tiles.
weberfloor acoustic system (SM545)
| REGUPOL Product | Weber Product | Floor Finish | Impact Performance ALw |
|---|---|---|---|
| REGUPOL sonus multi 500 series | 5 mm weberfloor bag & bottle 4000 & 30 mm weberfloor base rapid 4360 | N/A | 17dB |
| REGUPOL sonus multi 500 series | 5 mm weberfloor bag & bottle 4000 & 30 mm weberfloor base rapid 4360 | Carpet Tiles (5.5 mm) | 17dB |
| REGUPOL sonus multi 500 series | 5 mm weberfloor bag & bottle 4000 & 30 mm weberfloor base rapid 4360 | Ceramic Tiles (8.5 mm) | 19dB |
| REGUPOL sonus multi 500 series | 5 mm weberfloor bag & bottle 4000 & 30 mm weberfloor base rapid 4360 | LVT Plank (2 mm) | 17dB |
| REGUPOL sonus multi 500 series | 5 mm weberfloor bag & bottle 4000 & 30 mm weberfloor base rapid 4360 | Sheet Vinyl (2 mm) | 19dB |
All results are based on testing with REGUPOL sonus multi 530 and therefore represent a minimum value of acoustical performance
*suitable for use with tiles, vinyl, carpet, wood floor, or laminates etc
† contact Weber Technical Team for suitable adhesive options
