REGUPOL Product Selector

FOR VIBRATION ISOLATION AND STRUCTURE-BORNE SOUND DECOUPLING

REGUFOAM VIBRATION RANGE

The building authority approved REGUFOAM vibration range offers a portfolio of twelve product types which can be used in the wide load range between 0.002 N/mm² and 2.5 N/mm². This creates many possibilities to implement an isolation concept for projects in the field of building services and HVAC equipment, machines, pools and gyms, as well as vibration protection for buildings, especially those in close proximity to rail infrastructure.

The REGUFOAM vibration Range is based on mixed cellular polyurethane foams, which have been used successfully worldwide since the early 2000s for the vibration isolation and structure-borne sound decoupling of plant and machinery, as well as for vibration protection of buildings. REGUFOAM vibration is characterized by its outstanding durability. Successfully completed projects and expert opinions document the quality of these materials.

The REGUFOAM vibration Range consists of twelve product types that complement each other perfectly, especially under foundations with a great variety of different loads. Natural frequencies of ≤ 10 Hz can be achieved with thicknesses of 50 mm. Optimal results can be realised in the range of the specified load capacity limit. Exceeding this load limit leads to degressive spring characteristics, though not to material failure. In fact, the rated value for maximum load bearing capacity is 150 to 200% of the specified load limit.

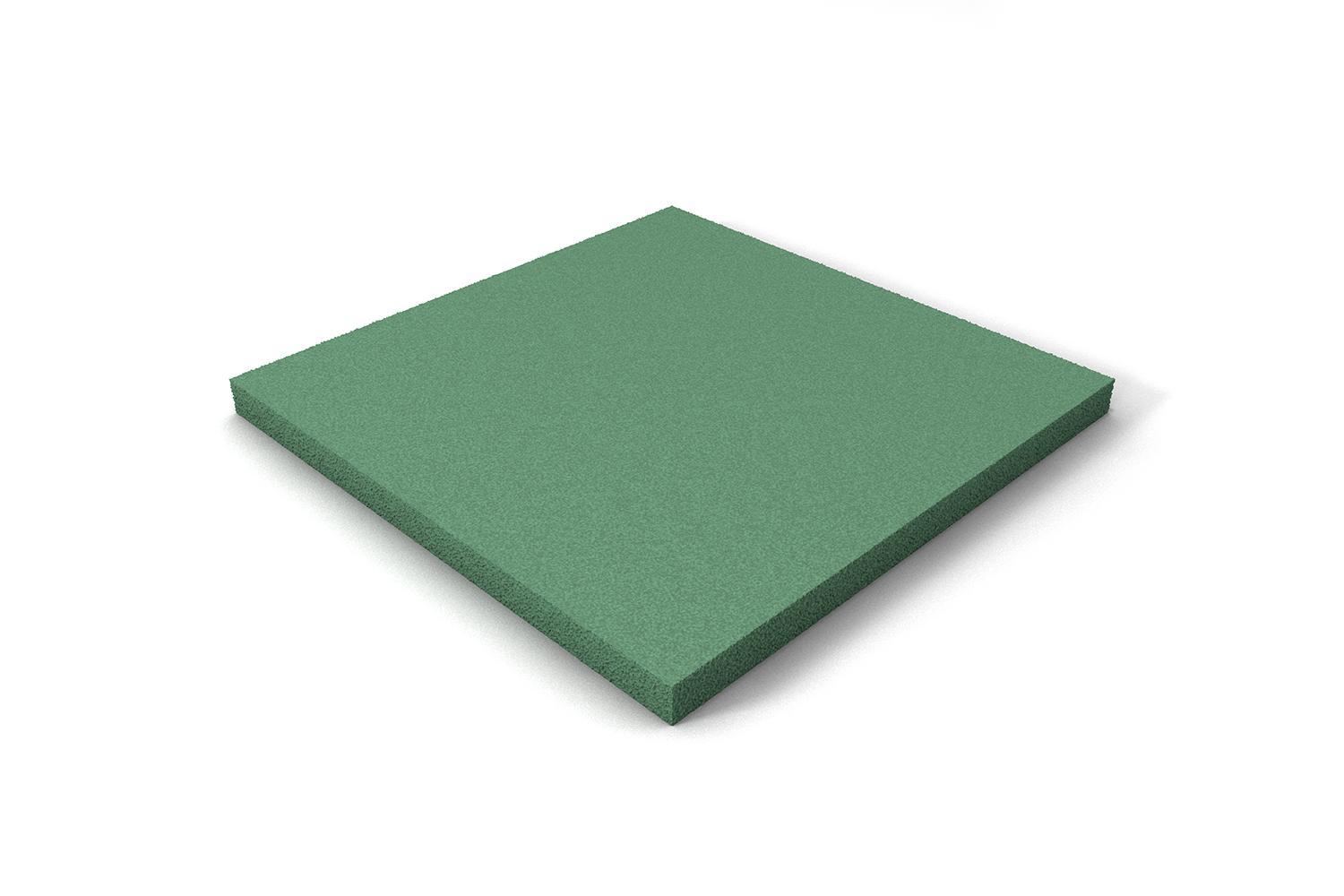

REGUFOAM VIBRATION 150PLUS

REGUFOAM vibration 150plus is used in the load range up to 0.011 N/mm². Depending on load and material thickness, natural frequencies of 9 Hz can be achieved.

REGUFOAM VIBRATION 270PLUS

REGUFOAM vibration 270plus is used in the load range up to 0.042 N/mm². Depending on load and material thickness, natural frequencies of 9 Hz can be achieved.

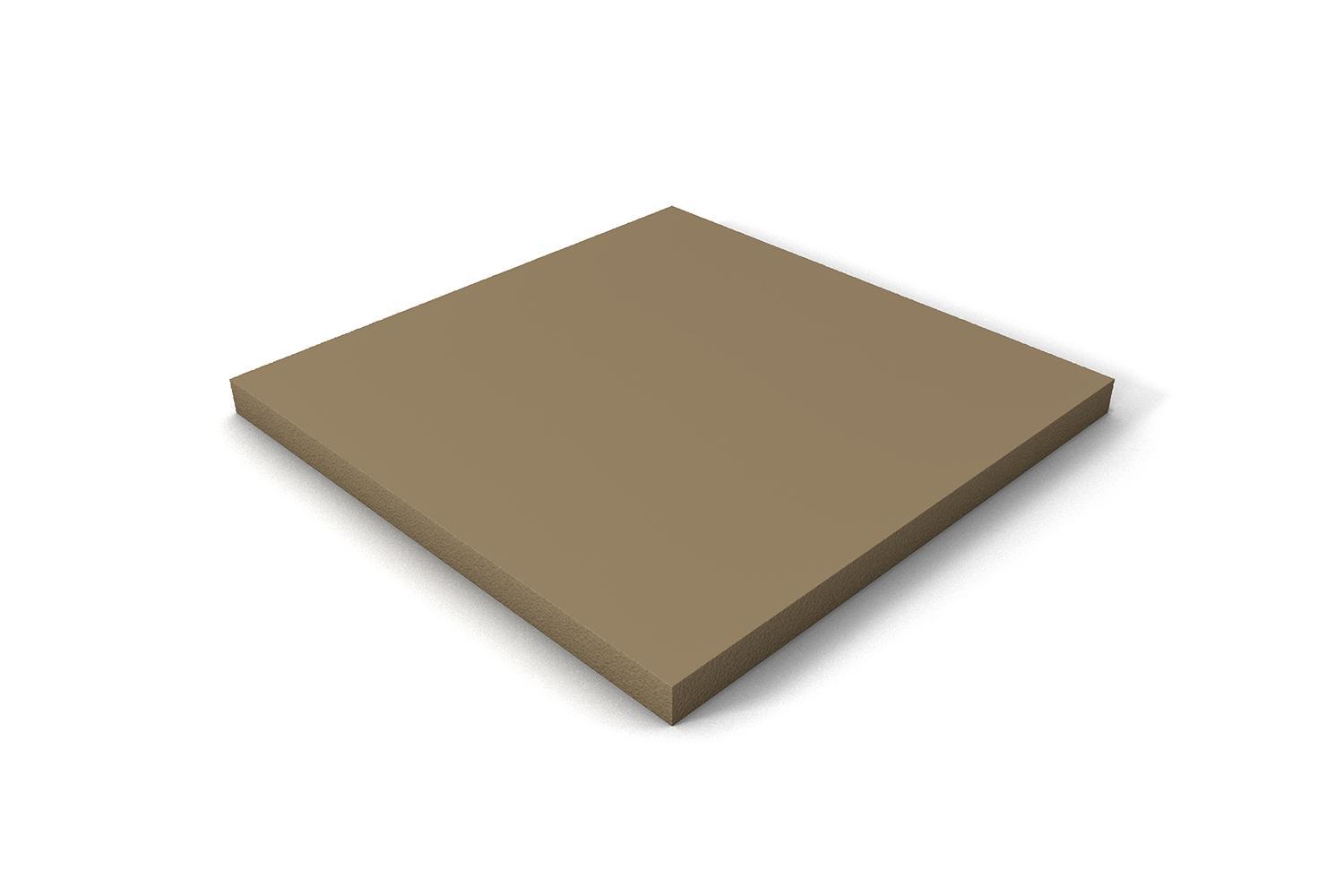

REGUFOAM VIBRATION 510PLUS

REGUFOAM vibration 510plus is used in the load range up to 0.22 N/mm². Depending on load and material thickness, natural frequencies of 8 Hz can be achieved.

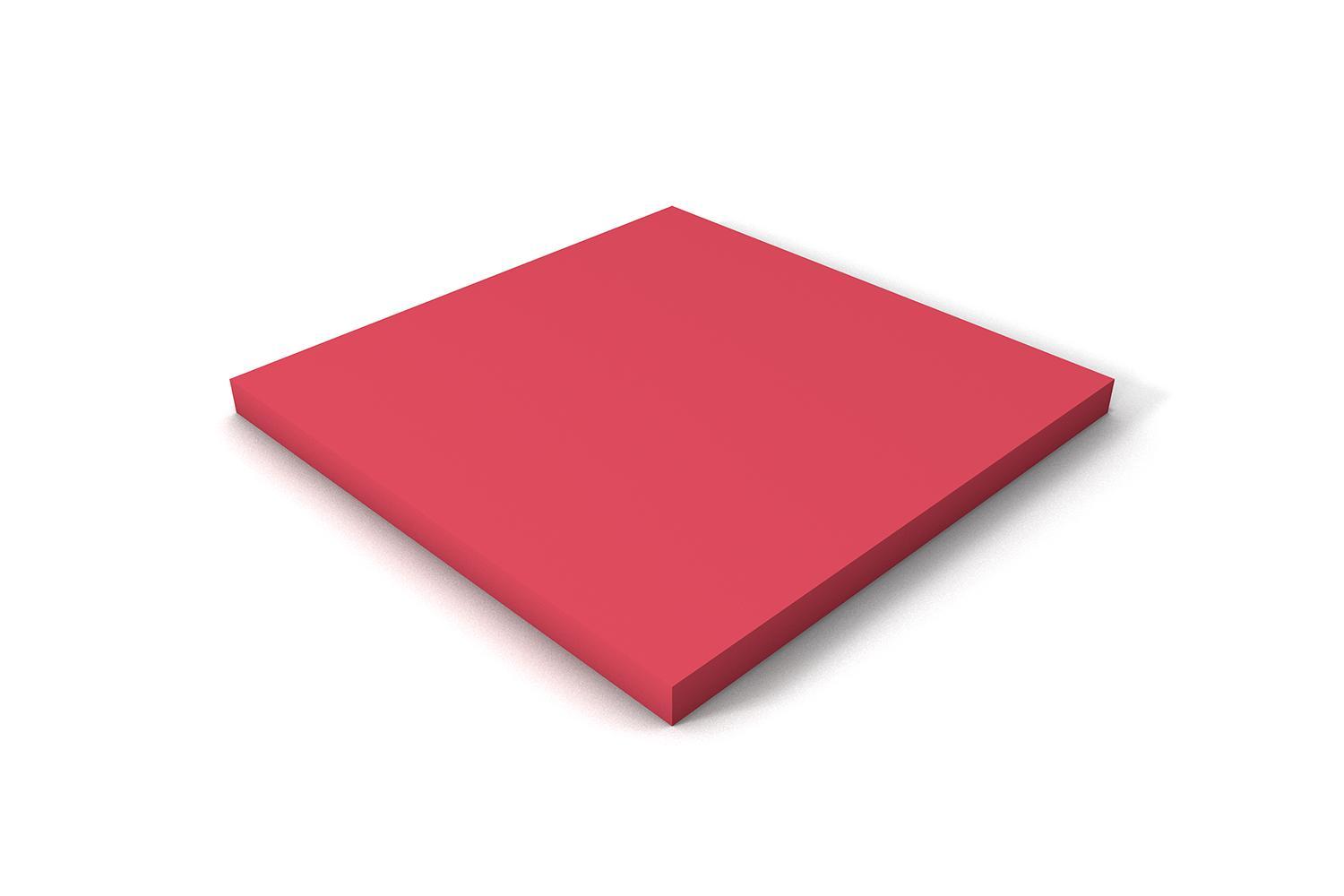

REGUFOAM VIBRATION 740PLUS

REGUFOAM vibration 740plus is used in the load range up to 0.60 N/mm². Depending on load and material thickness, natural frequencies of 9 Hz can be achieved.

REGUFOAM VIBRATION 190PLUS

REGUFOAM vibration 190plus is used in the load range up to 0.018 N/mm². Depending on load and material thickness, natural frequencies of 9 Hz can be achieved.

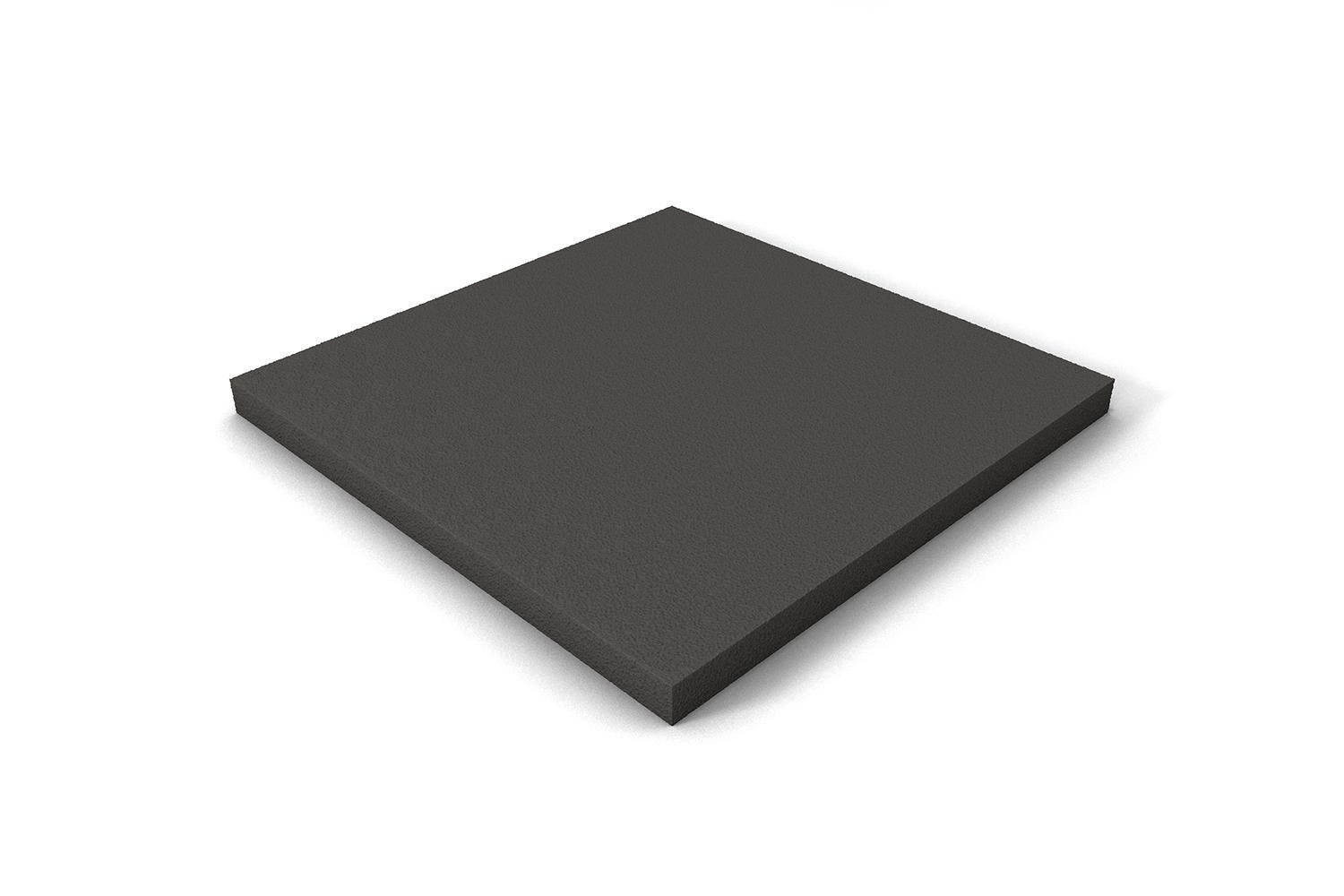

REGUFOAM VIBRATION 300PLUS

REGUFOAM vibration 300plus is used in the load range up to 0.055 N/mm². Depending on load and material thickness, natural frequencies of 9 Hz can be achieved.

REGUFOAM VIBRATION 570PLUS

REGUFOAM vibration 570plus is used in the load range up to 0.30 N/mm². Depending on load and material thickness, natural frequencies of 10 Hz can be achieved.

REGUFOAM VIBRATION 810PLUS

REGUFOAM vibration 810plus is used in the load range up to 0.85 N/mm². Depending on load and material thickness, natural frequencies of 8 Hz can be achieved.

REGUFOAM VIBRATION 220PLUS

REGUFOAM vibration 220plus is used in the load range up to 0.028 N/mm². Depending on load and material thickness, natural frequencies of 9 Hz can be achieved.

REGUFOAM VIBRATION 400PLUS

REGUFOAM vibration 400plus is used in the load range up to 0.11 N/mm². Depending on load and material thickness, natural frequencies of 8 Hz can be achieved.

REGUFOAM VIBRATION 680PLUS

REGUFOAM vibration 680plus is used in the load range up to 0.45 N/mm². Depending on load and material thickness, natural frequencies of 8 Hz can be achieved.

REGUFOAM VIBRATION 990PLUS

REGUFOAM vibration 990plus is used in the load range up to 2.5 N/mm². Depending on load and material thickness, natural frequencies of 8 Hz can be achieved.

REGUPOL VIBRATION RANGE

The building authority approved REGUPOL vibration range offers a portfolio of eight product types which can be used in the wide load range between 0.002 N/mm² and 1.5 N/mm². This creates many possibilities to implement an isolation concept for projects in the field of building services and HVAC equipment, machines, pools and gyms, as well as vibration protection for buildings, especially those in close proximity to rail infrastructure.

The REGUPOL vibration Range is based on rubber fibres and granules and has been used successfully worldwide for vibration isolation and structure-borne sound decoupling of machinery and vibration protection in buildings since the early 1990s. The material, made of recycled rubber from vehicle tyres, is extremely resilient and durable. Even after decades in use, its properties only change marginally. Successfully completed projects and expert opinions document the quality of these materials.

The REGUPOL vibration products have relatively wide load ranges and are characterised by a constant natural frequency. Best outcomes can be expected if the product is used within the range of the specified load capacity limit. Exceeding this load limit does lead to progressive spring characteristics but not to material failure. In fact, the rated value for maximum load capacity is 150 to 200 % of the specified limit.

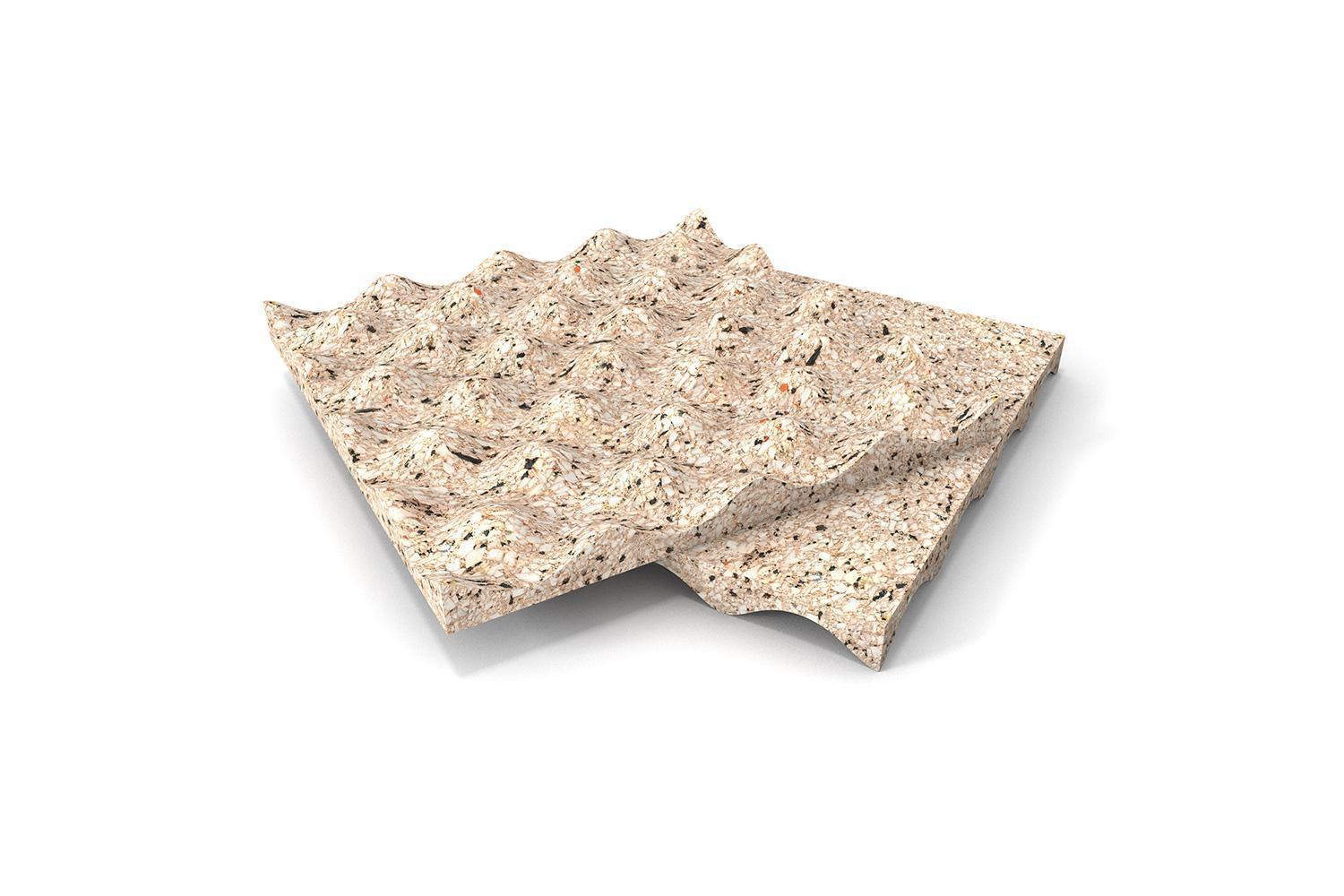

REGUPOL VIBRATION 200

REGUPOL vibration 200 is used in the load range up to 0.02 N/mm². Depending on load and material thickness, natural frequencies of 10 Hz can be achieved.

REGUPOL VIBRATION 450

REGUPOL vibration 450 is used in the load range up to 0.12 N/mm². Depending on load and material thickness, natural frequencies of 8 Hz can be achieved.

REGUPOL VIBRATION 800

REGUPOL vibration 800 is used in the load range up to 0.80 N/mm². Depending on load and material thickness, natural frequencies of 10 Hz can be achieved.

REGUPOL VIBRATION 300

REGUPOL vibration 300 is used in the load range up to 0.05 N/mm². Depending on load and material thickness, natural frequencies of 12 Hz can be achieved.

REGUPOL VIBRATION 480

REGUPOL vibration 480 is used in the load range up to 0.15 N/mm². Depending on load and material thickness, natural frequencies of 10 Hz can be achieved.

REGUPOL VIBRATION 1000

REGUPOL vibration 1000 is used in the load range up to 1.50 N/mm². Depending on load and material thickness, natural frequencies of 10 Hz can be achieved.

REGUPOL VIBRATION 400

REGUPOL vibration 400 is used in the load range up to 0.10 N/mm². Depending on load and material thickness, natural frequencies of 11 Hz can be achieved.

REGUPOL VIBRATION 550

REGUPOL vibration 550 is used in the load range up to 0.30 N/mm². Depending on load and material thickness, natural frequencies of 10 Hz can be achieved.
