Park bearers are designed for use on level concrete and steel/concrete composite separating floors as part of a suitable floor and ceiling construction.
Timber floating floors incorporating Park Bearers can provide effective sound insulation on concrete subfloors and eliminate the delays caused by the drying out of screeds.
The cavity created by acoustic bearers can accommodate service runs and underfloor heating systems under the floor.
Contact us today to find out more!

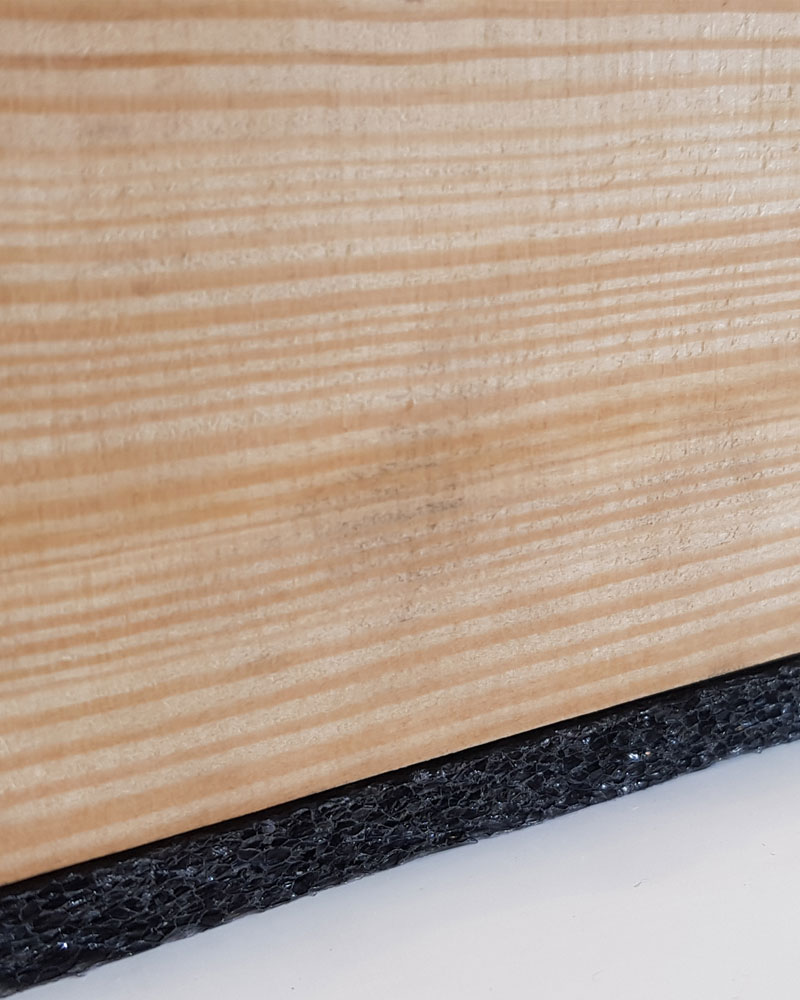

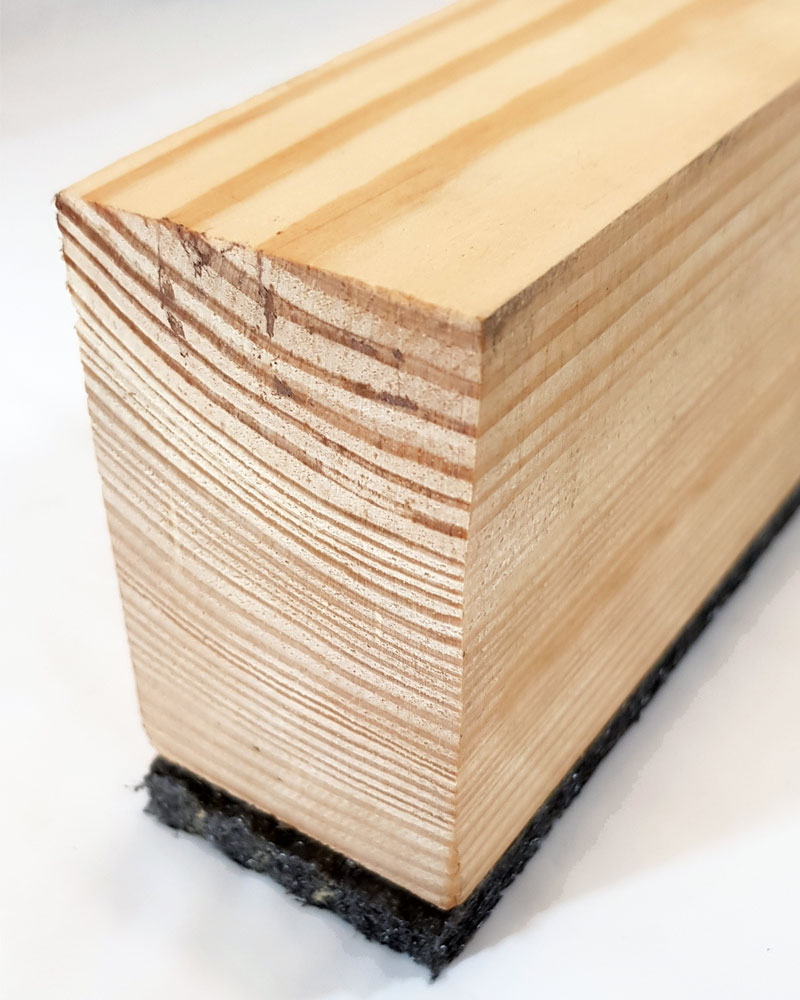

Park bearers consist of softwood timber battens 2400mm long by 45mm wide* with a specially developed 9mm thick resilient foam strip adhered to the underside.
Standard Heights** ( unloaded ) : 54mm , 79mm ( Nom.)
For FFT1 requirements use a 79mm Park Bearer Acoustic Battens.
For FFT3 requirements use a 54mm Park Bearer Acoustic Battens or higher.
Notes :
* Park Bearers comply with the WPIF Code of Practice for Particle Board and OSB Floating Floors (3/2018) which specifies a minimum finished batten width of 45mm.
** It is anticipated that the resilient layer will compress by around 2mm under a UDL of 25kg/m2.
Note :
*1 – In Northern Ireland the England and Wales Robust Detail constructions are accepted as an alternative to pre-completion sound testing to demonstrate compliance with Part G (NI) for new dwellings.
L-Shaped Flanking Strip for perimeter isolation.
Acoustic quilt (as required).
Flooring Boards
