Quietslab
Description

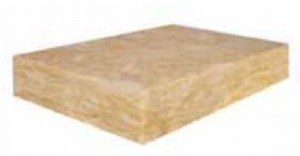

Quietslab MF mineral fibre slabs are manufactured from long stranded mineral fibres that are thermo-set with resin into slabs.

Advantages

  • Excellent thermal and acoustic insulation.
  • Fire and temperature resistant.
  • Chemically inert.
  • Cost effective and easy to install.
  • Vermin and rot proof.
  • CFC and HFC free.

Facings and Coverings

Quietslab MF mineral fibre slabs are available in a wide range of coverings and facings; a brief selection of coverings and facings available include:

  • Class ‘O’ foil facing.
  • Glass tissue scrim 60 gm/m2 (black and white).
  • Glass cloth 200 gm/m2 (black and white).
  • Melinex polyester film.
  • Ceramic paper.

Laminates

CMS MF mineral fibre slabs are also available laminated with mass barrier materials for acoustic insulation applications. Laminates include:

Polymeric mass barrier – 5 7.5 and 10 kg/m2
Lead sheeting – 5 10 and 15kg/m2

Quietlay MF mineral fibre slabs are ideal for a wide range of acoustic building and industrial applications. A highly versatile material with an extensive listing of applications such as acoustic ceilings, partition panels, walls, floors, roofs, ductwork and industrial enclosures. Also, thermal insulatior for boilers, heat exchangers, plant, tanks and pipes. Quietlay MF mineral bonded slabs an be flat or curved to suit requirements.
Physical Information

Dimensions
Standard slab sizes are: 1200 x 600mm.
Standard slab thicknesses are: 25, 30, 40, 50, 60, 75 and 100mm.
Standard slab densities are: 33. 45, 60, 80, 100, 128, 140, 160 and 200 kg/m3.

Notes:
Minimum density for 25mm thick is 45kg/m3.
Maximum thickness for 160kg/m3 is 50mm.
Maximum thickness for 200kg/m3 is 60mm.
Non standard slab sizes and thickness are available upon request.

Technical Information
Quietslab MF mineral bonded slabs conform to the following specifications:
BS 476 Part 4 – Non combustible (plain)
BS 476 Parts 6 & 7 – Class ‘O’ (faced)

Resistance to compression (BS EN 826:1996) – Density kg/m2

33
60
80
100
140
200
Stress to give 10% compressions (kN/m2)
2.0
6.7
12.9
16.4
28.2
68.2
Stress to reach elastic limit (kN/m2)
2.3
6.1
9.2
11.3
26.1
49.9
Displacement at 5kN/m2 Stress (%)
38.6
7.8
3.4
2.7
1.7
0.7
Minimum Bending Radius (m) – Slab thickness (mm)
30
40
50
60
75
100
Density 33 kg/m2
0.35
0.40
0.50
0.70
0.90
1.50
Density 60 kg/m2
0.42
0.50
0.70
1.00
1.35
1.90
Density 100 kg/m2
0.55
0.70
1.00
1.50
2.25
2.50
Density 140 kg/m2
31.50
1.90
2.60
3.00
3.30
3.50
Thermal Conductivity (W/mK) – Density kg/m3
(BS 874:1973 Cold face 40°C)
Mean Temp. °C
30
40
50
60
75
100
10*
0.035
0.033
0.033
0.033
0.033
0.034
50
0.043
0.039
0.038
0.037
0.037
0.034
100
0.055
0.047
0.045
0.044
0.044
0.043
150
0.07
0.058
0.055
0.054
0.051
0.05
200
0.07
0.066
0.064
0.06
0.059
250
0.079
0.075
0.07
0.068
300
0.088
0.081
0.079
350
0.104
0.093
0.089
400
0.122
0.106
0.1
*Measured with a cold face temperature of 0°C
Maximum Service Temperatures

Quietslab MF mineral fibre slabs can be used up to a maximum temperature of 850UC, but this can vary depending on the compostion of the slab / product. The phenolic resin used to bond the slabs is resistant to temperatures up to 230”C, and above this some resin wil be lost to the hot surface causing discolouration.

Acoustic Performance

Quietslab MF mineral fibre slabs provide excellent sound reduction characteristics by both impending the transmission of sound and by absorption of the sound at the surface.

Absorption coefficients – Frequency (Hz)

Slab Density (kg/m3)
Thickness (mm)
125
250
500
1000
2000
4000
33
40
0.1
0.45
0.82
1
1
0.82
33
50
0.1
0.6
0.9
1
1
0.88
33
60
0.22
0.75
1
1
1
0.94
33
75
0.24
0.53
0.89
0.94
0.96
0.83
33
100
0.39
1
1
1
1
1
45
25
0.05
0.25
0.55
0.75
0.9
0.81
45
40
0.14
0.4
0.87
1
1
0.82
45
50
0.25
0.65
1.05
1.1
1.05
0.96
45
75
0.5
1.05
1.2
1.15
1.1
1.13
45
100
0.8
1.15
1.2
1.15
1.15
1.16
60
25
0.1
0.2
0.65
0.85
1
0.68
60
40
0.13
0.49
0.95
1
1
0.86
60
50
0.25
0.65
1.05
1.1
1.1
0.98
60
75
0.55
1.1
1.2
1.15
1.15
1.15
80
25
0.06
0.25
0.55
0.88
1
0.67
80
40
0.11
0.61
1
1
1
0.9
80
50
0.16
0.72
1
1
1
0.93
80
60
0.25
0.9
1
1
1
0.98
80
75
0.39
1
1
1
1
1
80
100
0.89
1
1
1
1
1
100
25
0.05
0.3
0.76
0.95
1.05
0.75
100
40
0.12
0.44
0.88
1
1
0.95
100
50
0.35
0.85
1.1
1.1
1.15
1.05
100
75
0.44
1
1
1
1
1
128
50
0.4
0.9
1
1
1
1
140
50
0.4
0.9
1.15
1.05
1.1
1.05
200
500
0.4
0.5
0.7
0.7
0.7
0.65
Noise absorption is expressed as a factor between 0 and 1.0, the more sound that a surface absorbs the higher the coefficient. The composition of the MF mineral bonded fibres makes them ideal for use as sound absorbers due to the high coefficients over a wide range of frequencies.
Typical Installations

Quietslab MF mineral bonded slab is a particularly versatile product that has a wide range of applications, typical applications include:

  • 33 kg/m3 density slab is ideal for acoustic enclosures.
  • 45 kg/m3 density slab is ideal for acoustic enclosures and duct lining.
  • 60 kg/m3 density slab is ideal for acoustic enclosures, duct lining and lagging, partitions and floors.
  • 80 kg/m3 density slab is ideal for acoustic enclosures, duct lining and lagging, partitions and floors.
  • 100 kg/m3 density slab is ideal for duct lining, partitions and floors.
  • 140 kg/m3 density slab is ideal for sound baffles, duct lining, partitions and floors.
  • 200 kg/m3 density slab is ideal for sound baffles, duct lining, partitions and floors.

Installation Service

In addition to supply of this product CMS Danskin Acoustics offers a competitively priced installation service anywhere in the UK. Use of our service ensures that installation is performed to the highest standards by tradesmen fully experienced in the specialist skills of fitting acoustic materials correctly. For further details contact our technical team on 01925 577711.
