SuperLag Type AcoustiShield

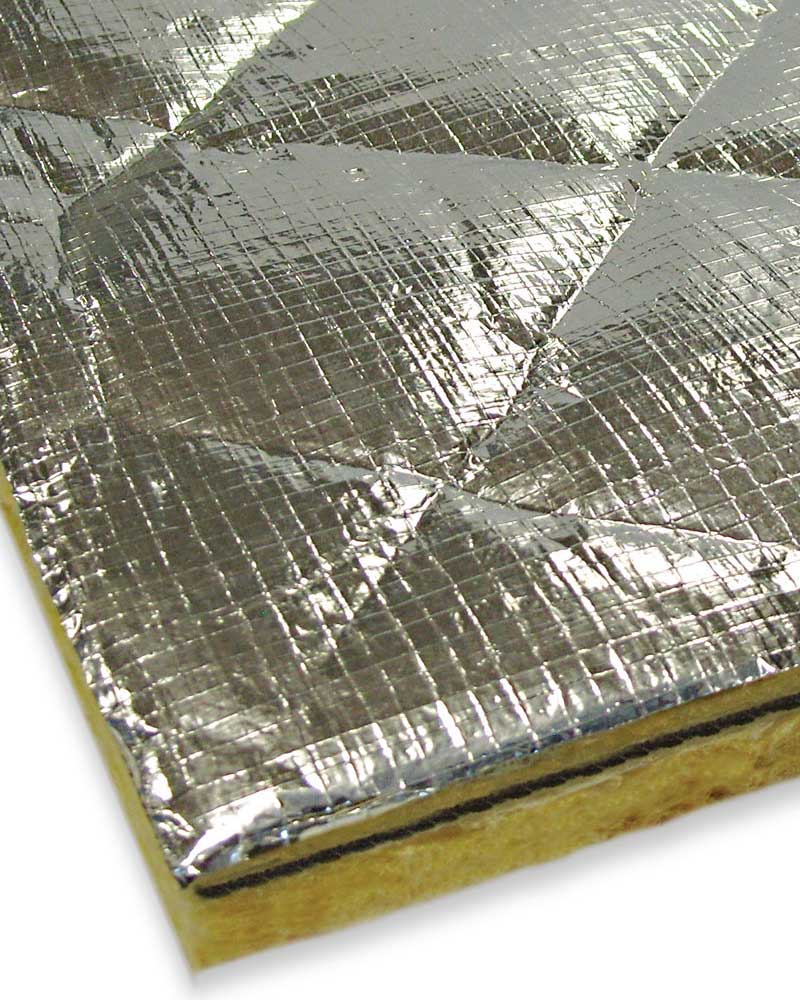

CMS Danskin Acoustics AcoustiShield acoustic lagging material is a five part laminate incorporating an inner 25mm glass fibre spacer

CMS Danskin Acoustics AcoustiShield acoustic lagging material is a five part laminate incorporating an inner 25mm glass fibre spacer or isolating layer backed by woven glass tissue a middle heavy mass barrier of lead or a polymeric acoustic barrier material with an outer 25mm glass fibre spacer with Class ‘O’ foil facing.

The heavy mass barrier is available with a surface weight of 5kg/m² for standard applications or high performance requirements a 10kg/m² barrier is available.

Product designations are as follows:

  • L5 is with a 5kg/m² lead barrier.
  • L10 is with a 10kg/m² lead barrier.
  • P5 is with a 5kg/m² polymeric barrier.
  • P10 is with a 10kg/m² polymeric barrier.

Applications for SuperLag Type AcoustiShield

CMS AcoustiShield acoustic lagging material is typically used for air conditioning ductwork and pipe work that requires acoustic treatment.

Benefits of SuperLag Type AcoustiShield

  • Available in sheet form.
  • Flexible and easily cut.
  • Easy to handle and install.
  • Excellent acoustic performance.
  • Single product wrap.

Insulation Fixing Pins

A range of insulation hangers to provide instant mechanical fixing of preformed insulation to various surfaces.

They are often used as the sole means of support without the need for any additional adhesive bonding. They can also be used as a temporary aid to installation where additional mechanical support is also required. Used efficiently they are a means of considerably reducing on-site labour costs.

For our Insulation Fixing Pins product datasheet, click here.

PIB Sheeting

Tough waterproof and weather resistant rubber sheet based on Polyisobutylene (PIB).

It is coloured black and has excellent resistance to abrasion mechanical damage and weathering. It has very low water vapour permeability is unaffected by sunlight ozone and extremes of temperatures and will not crack with age.

PIB Sheeting is easy to install using solvent welding
Suitable wielding agents 1 solvents are readily available.
No special adhesives are required.

The sheet is dusted with talc to ensure smooth easy unwind from the roll.

Applications

Waterproof covering for thermal insulation on pipework and ventilation trunking.

Benefits

  • High UV Resistance
  • Resistant to cracking abrasion mechanical damage and weathering
  • Very low water vapour permeability
  • No Special adhesives required
