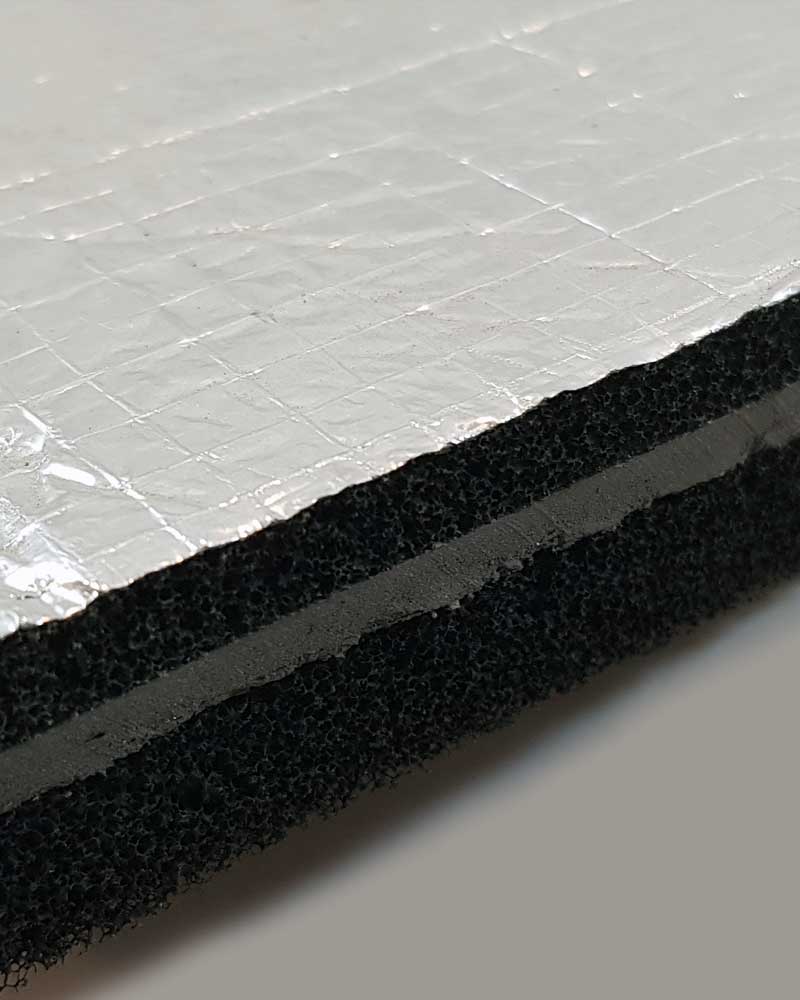

CMS Danskin Acoustics SUPERLAG® Pipe Lag is a product consisting of a four part laminate including two acoustic isolation layers or spacers of polyurethane acoustic foam, separated by a heavy mass layer or acoustic grade lead or polymeric barrier with a facing of Class ‘0’ reinforced foil. SUPERLAG® Pipe Lag is available in a range of formats by varying the weight and type of the mass barrier and selecting from three thicknesses of acoustic spacer layers to suit the performance required
SUPERLAG® Pipe Lag
Technical information for SUPERLAG® Pipe Lag
Acoustic Heavy Mass Sheet Barrier
Surface weight: 5 kg/m2or 10 kg/m2
Composite
Operating Temperature: -30 to 80oC
Application
CMS Danskin Acoustics SUPERLAG® Pipe Lag is a highly efficient acoustic treatment designed for rainwater pipes, pneumatic & hydraulic pipes, and waste water pipes for industrial, commercial & construction applications. Steam pipes can also be treated with SUPERLAG® Pipe Lag providing a suitable thermal insulation is applied as the first layer in direct contact with the pipe face. Being of a foam laminate construction, it is ideal where fibre erosion is not acceptable and where a significant reduction in break-out noise is specified.
Features and Benefits
- Easy and quick to apply.
- Excellent acoustic performance.
- Applied as a single dry treatment.
- Low thermal conductivity.
