SoundDeck Overlay Acoustic Floor Boards

SoundDeck® acoustic floor boards have achieved RD as an overlay shallow platform floor system

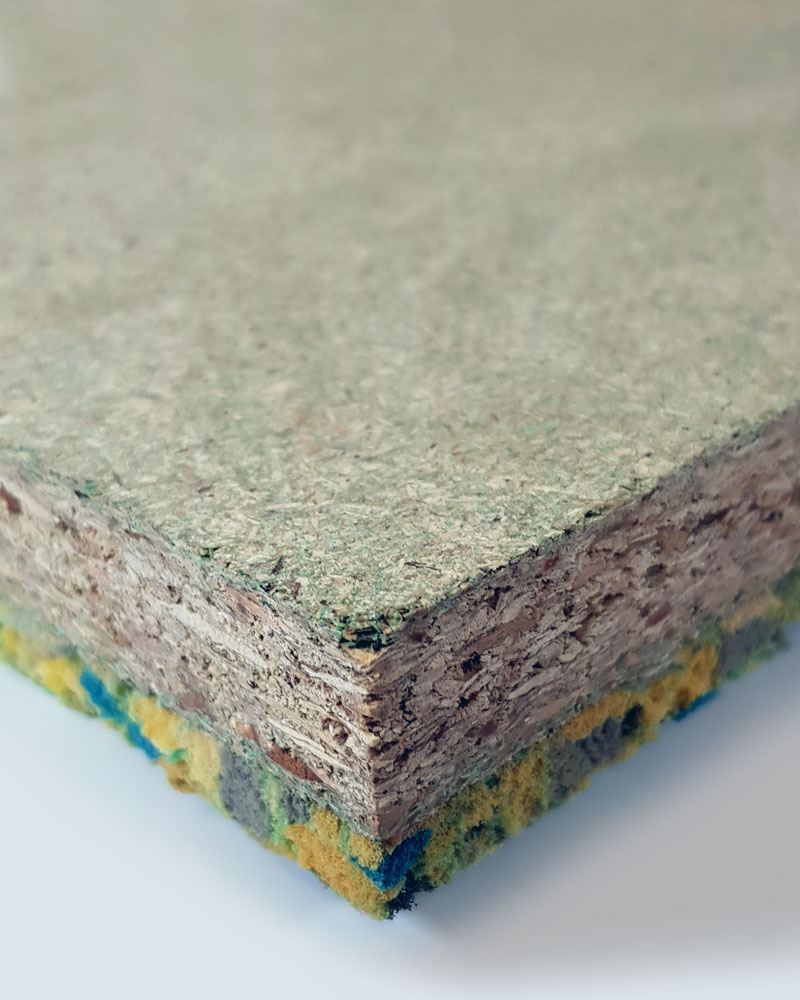

SoundDeck® acoustic floor boards comprise a resilient layer pre-bonded to 18mm or 22mm Tongue and Groove flooring grade chipboard designed to reduce impact sound. Regupol SoundDeck® acoustic floor boards can be used as an acoustic overlay for refurbishments and RD concrete sub floors.

SoundDeck® acoustic floor boards have achieved RD as an overlay shallow platform floor system (Type FFT5) for use with Robust Details floor construction types E-FC-1 E-FC-2 and E-FS:1.
  • Approved as Doc E compliant for conversion and new build standards
  • Approved for robust standard detail FFT5
  • Ideal for pre-cast and beam & block floors
  • Minimises construction heigh

Installation

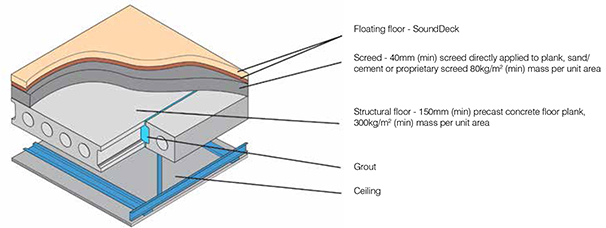

SoundDeck® acoustic floor boards are a resilient overlay shallow platform floor system (Type FFT5) for use with Robust Details floor construction types E-FC-1,

E-FC-2 and E-FS:1.

  • Ensure that concrete floors are level and clean.
  • Butt planks tightly together
  • Grout all joints between concrete planks.
  • Fill all voids between walls and floor

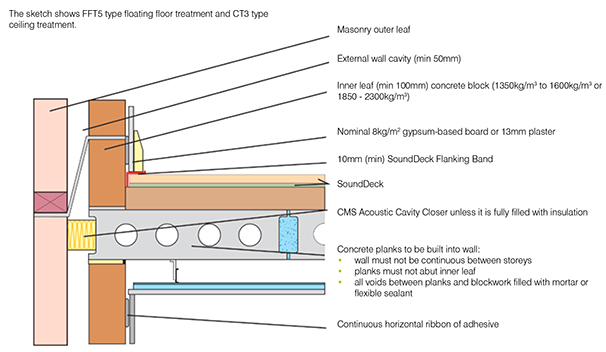

Install SoundDeck flanking band around the perimeter of the floor to isolate flooring boards from walls and skirtings.

Installation for Refurbishment

SoundDeck® acoustic floor boards are a resilient overlay shallow platform floor system designed to reduce impact sound in the refurbishment of properties.

  • Ensure that concrete floors are level and clean
  • Butt planks tightly together
  • Ensure there are no protruding nail/screw heads in floor
  • Fill all voids between walls and floor
  • Grout all joints between concrete planks
  • Install SoundDeck flanking band around the perimeter of the floor to isolate flooring boards from walls and skirtings

Benefits

Product Specification
Thickness
Width
Length
26 or 30mm
600mm
2400mm
SoundDeck® acoustic floor boards conform to the following specifications
**RD compliance requirement dB ∆Lw
17dB
SoundDeck rating dB ∆Lw
19dB

*Measured in accordance with BS EN ISO 140-8:1998
**SoundDeck overlay floor system for RD Concrete Sub-Floors must be used with SoundDeck Flanking Band to ensure compliance.

CMS Danskin Acoustics Flanking Band is a cross-linked closed cell polyolefin foam strip which is designed to reduce the transmission of flanking sound around the perimeter of acoustically isolated floor systems. It is pre-scored on one side for ease of application comes in a variety of widths and is available with or without self-adhesive backing. Custom sizes are available to special order.

  • Reduce both airborne and impact noise.
  • Isolates acoustic flooring system from adjacent structures.
  • Suitable for use in both commercial and residential applications efficiently limiting the passage of flanking noise through the floor and walls.
  • Pre-scored on one side for ease of application.
  • Available in standard and customer widths.
  • Flexible and easy to cut.
  • Simple to install.
  • Cost effective.
Product Specification
Total Width
Score Position
Length
40mm
20mm
20mm
10mm
75mm
25mm
50mm
10mm
100mm
25mm
75mm
10mm

Installing the Acoustic Flanking Band

The CMS Flanking Band is applied around the perimeter of acoustic flooring systems to reduce airborne and impact noise and is suitable for use in both commercial and residential applications, efficiently limiting the passage of flanking noise through the floor.

The CMS Acoustic Flanking Band is ideal for new, retrofit or renovation projects in offices, homes and hotel applications as it is so easy to fit and can be used with acoustic battens, acoustic cradles and acoustic decking.

Flanking band isolates the flooring system from adjacent structures. The band is trapped against the wall and returned down over the flooring. The skirting board is then fixed to the wall securing the flanking strip between the skirting board and the SoundDeck.  After the skirting board is installed, simply trim the flanking strip flush with a sharp trimming knife.
