Vertiface Sound Absorption Panels

Enquire about this product


vertiface sound absorption panelsVertiface sound absorption panels reduce noise through an aesthetic interior wall covering.

CMS Danskin Acoustics offer two varieties of Vertiface Type ‘A’ and Type ‘R’. Although they have much in common there are differences relating to available colourways tile size available thicknesses roll width and Noise Reduction Coefficient. Where there are differences they are highlighted on this website. There are also separate datasheets for each type.

Vertiface sound absorption panels offer a high performance acoustic solution for finished interiors. Designed to offer a simple solution to noise challenges in a variety of settings these attractive sound absorption panels make creating a quieter and more peaceful environment quicker and easier than you think.

Adhering directly onto interior walls Vertiface sound absorption panels are made from a high density polyester material that helps improve listening conditions by absorbing sound produced within a room and reducing the transmission of noise from outside. This is particularly important in environments such as classrooms where noise levels act as a barrier to learning.
For professional durable finish to your Vertiface sound absorption panels a range of plastic extrusions for edges joins and internal and external corners is also available.
Benefits
  • Excellent acoustic absorption
  • Safe non-toxic non-irritant recyclable and environmentally friendly
  • Pin staple and ‘hook and loop’ receptive
  • Resistant to staining
  • Resistant to fading
  • Will not absorb moisture
  • Range of extrusions for fast installation and neat attractive finish
Vertiface sound absorption panels are especially well suited to the education sector, commercial offices, theatres, libraries, retail, restaurants, residential applications including children’s bedrooms, stairwells and corridors. It is used anywhere that reverberated noise is a problem.

There are different colours availalbe for Vertiface Type ‘A’ and Vertifiace Type ‘R’.
Vertiface colour guide
Note: the above colours should be used as a guide only. We will supply a detailed colour swatch and product samples on request. Other colours are available on special order, please contact us for details.

Constructed from polyester fibres thermally bonded in a non-woven matrix and high laminated to a high density polyester fibre backing. It is supplied as tiles, either with self-adhesive backing or plain, and can also be supplied in rolls. It is available in fine velour, ‘Classic’ rib and embossed finishes and in a wide range of colours. A 25mm thick version is also available in sheets; this exhibits increased acoustic absorption characteristics.

Class ‘A’ Absorption
The absorption classes offered by Vertiface sound absorption panels now range from D through to A, with material combinations available to suit all aborption classes. Where Class A absorption is required, Vertiface sound absorption panels should be installed on battens to create an air space for enhanced performance.

 Acoustic Performance
Vertiface sound absorption panels have been tested to a Noise Reduction Coefficient (NRC) of 0.4 and will typically reduce reverberated noise by approximately 40%. With additional backing material, Vertiface Type ‘A’ can achieve 1.05 NRC and Vertiface Type ‘R’ can achieve 0.95 NRC. Our technical team can advise further on these matters.

Physical Information
There are some differences in specification between Vertiface Type ‘A’ and Vertiface Type ‘R’, highlighed in italics in the table below.
Vertiface Type AVertiface Type R
Fibre100% Polyester100% Polyester
Weight1600gm2 (typical)1600gsm (typical)
Thickness10 - 12mm10 - 12mm, 16mm
Tile Size600 x 600mm500 x 500mm
Tile Pack6 tiles per pack (2.16m2 coverage)10 tiles per pack (2.5m2 coverage)
Roll Length25m25m
Roll Width1.22m1m
Fire Rating• EN 13501-1:2007
• Vertiface 10mm & 12mm - Bs1, d0
• Flaming droplets/particles index (0-10) 0
• Smoke production index (0-10) 1
BS476:
Part 5: Class P
Part 6: Index i, = 3.1, index i2 = 0.0, index i3 + 0.0 Fire Propagation Index =3.1
Part 7: Class 1
Colour
fastness
to light
• Light fastness rating - 3 • Suitable for indoor use only
• 150105-Bo2-1994 (grey scale 1-5)
Light fastness rating - 3 suitable for indoor use (ISO105-BO2 - 1994 lamp xenon arc method1)
Light fastness rating - 7 (TSL 9002Y)
Technical information

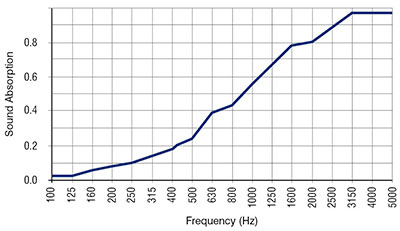

Random incidence sound absorption coefficient to BS EN ISO 354:2003
Absorption classification tested to BS EN ISO 11654:1997
Independent tests undertaken by Sound Research Laboratories Limited. Test data available on request.
Frequency / Thickness
125
250
500
1k
2k
4k
NRC
Absorber
Classification*
10 - 12mm rolls or tiles
0.05
0.05
0.20
0.40
0.65
0.85
0.35
D
16mm panel
0.05
0.10
0.30
0.70
0.95
1.00
0.50
D
16mm panel with 22mm battens
0.0.5
0.25
0.65
0.95
1.00
1.00
0.75
D
16mm panel with 45mm battens
0.25
0.60
0.90
1.00
1.00
1.00
0.90
A
16mm panel with 70mm battens
0.30
0.75
0.90
0.95
1.00
1.00
0.90
A
16mm panel with 15mm honeycomb backing
0.10
0.25
0.80
1.00
1.00
1.00
0.80
D
16mm panel with 25mm honeycomb backing
0.15
0.45
1.00
1.00
1.00
1.00
0.95
C
22mm panel
0.10
0.20
0.55
0.90
1.00
1.00
0.70
D
22mm panel with 22mm battens
0.15
0.35
0.85
1.00
1.00
1.00
0.85
C
22mm panel with 45mm battens
0.25
0.65
0.95
1.00
1.00
1.00
0.95
A
22mm panel with 70mm battens
0.30
0.80
1.00
1.00
1.00
1.00
1.00
A
22mm panel with 15mm honeycomb backing
0.15
0.45
0.95
1.00
1.00
1.00
0.90
C
22mm panel with 25mm honeycomb backing
0.25
0.65
1.00
1.00
1.00
1.00
1.05
A
Care and Maintenance

Vertiface sound absorption panels are extremely durable and requires little attention to retain its good looks. Full cleaning and maintenance details are available – please contact us for a detailed product folder.

Vertiface sound absorption panels are installed using standard hand tools. It is fixed in place using Fastfix adhesive, and a range of extrusions are available to ensure neat, durable edges if required.

Design Flexibility

Vertiface sound absorption panels offer design flexibility to include cut-ins and logos as the material does not fray when cut.

It incorporates the additional benefits of Pinguard, meaning that it can also be used as a display board without having unsightly pin holes in the wall.

Available in a wide choice of vibrant colours, the Vertiface sound absorption panel range can be used to create a warmer, brighter environment.

Simple to install rolls, tiles or panels

Vertiface sound absorption panels are easy to install from roll material. Once the installation is planned and drops cut, a contact adhesive should be used, which is available from CMS Acoustics in either 5 litre or aerosol containers.

For best results, two-way application of the adhesive is recommended to both surfaces. If one-way application is used, it is important that the adhesive is applied to the wall rather than the product.

For Butt joined installations, the product should be installed lengthways and the drops rolled toward the joins first, and then rolled down the entire drop.

When using rigid profiles, these should be installed prior to hanging the rolls, when applying the adhesive, a gap of 70mm should be left either side of the profiles to allow for tucking in.

For smaller areas, a ‘peel and stick’ backed tile solution is available to offer additional flexibility.

Environmentally friendly

Construction from 100% polyester fibres, Vertiface sound absorption panels are fully recyclable, ensuring an environmentally friendly solution. It is a safe non-toxic and non-irritant material that meets Bristish Standards Flammability rating for the purpose of its installation.

Durable

Veritface sound absorption panels are resistant to fading and staining and will not absorb moisture. This means it will not rot or breakdown and, as a result, provides long term stability and performance. Its wipe clean surface protects against accident.al spillage

vertiface sound absorption panels case study
Click the relevant datasheets to download:
Vertiface Type A Datasheet
Vertiface Type R Datasheet
