Regupol Acoustic Isolating Strips
We have Regupol® Acoustic Isolating Strips for both timber/metal stud frames and blockwork. Just click on the appropriate tab for more detailed information.
Regupol® Acoustic Isolating Strips are designed to isolate noise and vibrations at source.
Regupol® Acoustic Isolating Strips are a very simple and effective way to reduce structure borne noise. There are a number of different Regupol® materials that can be installed as isolating strips each one tailored to withstand a specific weight per linear metre therefore we have a Regupol® solution for all particular requirements.
Benefits
- Our Acoustic Isolating Strips offer long term performance without collapse or ‘bottoming out’ under high point loads
- Standard thickness 6mm although other thicknesses are available upon request
- Capable of withstanding loads up to and including 0.8N/mm2 with low frequency performance achieved
- Resistance to ageing and deformation
- Quick and easy to install
- Minimises construction heights
- High quality and exact material thickness guaranteed
Regupol® Acoustic Isolating Strips are constructed of a rubber crumb product. It is designed to isolate noise and vibrations at source.
Regupol® Acoustic Isolating Strips are designed to sit beneath all types of partition walls and are a very simple and effective way to reduce structure borne noise. There are a number of different Regupol® materials that can be installed as acoustic isolating strips each one tailored to withstand a specific weight per
linear metre therefore we have a Regupol®
solution for all particular requirements.
Benefits
- Offers long term performance without collapse or ‘bottoming out’ under high point loads
- Standard thickness 6mm although other thicknesses are available upon request
- Capable of withstanding loads up to and including 0.8N/mm2 with low frequency performance achieved
- Resistance to ageing and deformation
- Quick and easy to install – simply bond to the subfloor beneath the blockwork
- Minimises construction heights
- High quality and exact material thickness guaranteed
- Available with various backings including self adhesive backing and Class ‘O’ foil facing
- Supplied with a protective film on both sides eliminating the ingress of mortar and moisture from the slab
Technical Information
Installation

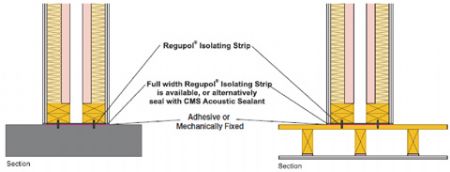

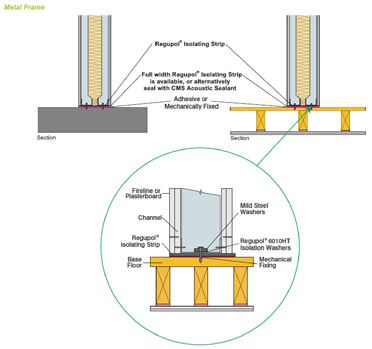

Acoustic Isolating Strips are designed to sit beneath all types of studwork partitions.
Important Note
All Partitions to be fixed in accordance with manufactures guidelines. If mechanically fixing please ensure all fixings are isolated using Regupol® 6010HT washers and mild steel washers.
These diagrams are for illustration purposes only and are intended to show the installation of Regupol® Acoustic Isolating Strips. For information relating to your specific application, please contact CMS Acoustics.
NB:
- The Recognized technical rules of the industry, and the code of practice requirements of BS8203:2001 “installation of Resilient Floor Coverings” are to be observed.
- Regupol® Acoustic Underlayments can be easily installed providing of BS 8203:2001 and our installation guidelines are observed.

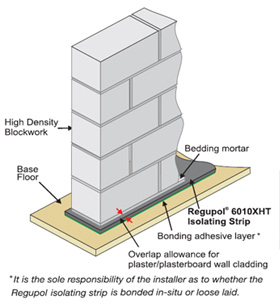

Regupol® Acoustic Isolating Strips for Blockwork are designed to sit beneath blockwork walls and are a very simple and effective way to reduce structure borne noise. Manufactured from rubber crumb the strips benefit from longevity and minimal creep.
Benefits
- Standard thickness is 6mm although there is a wide range of widths available.
- Offers long term performance without collapse or “bottoming” out under high load points.
- Resistant to ageing and deformation.
- Quick and easy to install – simply bond to the subfloor beneath the blockwork.
- Minimises construction heights.
- High quality and exact material thickness guaranteed.
- Capable of withstanding loads up to and including 0.8N/mm2 with low frequency performance achieved.
- Completely recyclable and can therefore compliment companies Environmental Policies.
Applications
Regupol 6010XHT acoustic isolation strips are a great way to reduce structure borne noise and are very easy to install.CMS Acoustics can supply them in a wide range of widths to suit your application.
Widths:
- 43mm
- 100mm
- 120mm
- 200mm
Product Specification
bearing capacity | sizes | resistance | of elasticity | of elasticity* |
(Short Term) | ||||
to DIN 53572** | to DIN 53571 | to DIN 53571 | to DIN 53515 | |
**Measured 30 minutes after decompression with 50% deformation @ 23°C after 72 hours |
||||
Click the relevant datasheets to download:
