Quietlay Robust Detail Screed Isolation


Regupol® Quietlay Robust Detail screed isolation material for pre-cast units.
QuietLay Acoustic Under Screed Insulation Logo QuietLay Acoustic Under Screed Insulation

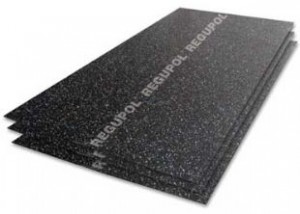

Regupol® Quietlay is a cost effective rubberbound robust detail screed isolation. It is  manufactured from recycled materials and forms part of the globally renowned range of Regupol®.

Regupol® Quietlay robust detail screed isolation is the core proprietary product as part of Robust Detail E-FC-15™.

Regupol® Quietlay is quick and easy to install. It has no requirement for separate perimeter strips. This saves time and labour costs.

Main Features

  • Robust Detail approved E-FC-15™
  • No need for separate perimeter strips
  • Supplied in easy-to-handle sheets
  • 3 Credits Entitlement for Code for Sustainable Homes
    (with Pre-Completion Testing)

Additional Benefits

  • Offers long-term performance without collapse or “bottoming out” under high point loads
  • Minimises construction heights
  • Mildew and moisture proof
  • Zero Global Warming Potential (GWP) and Zero Ozone Depletion Potential (ODP)
  • When used with a sand/cement screed there is no requirement to use a DPM (see diagrams under ‘Installation’ tab above

What is a Robust Detail?

A Robust Detail is an independently awarded UKAS-accredited certificate. It ensures a particular product when installed in accordance with RD documentation will consistently exceed the requirements of Part E of the Building Regulations. Because the product has been pre-tested to a higher standard there is no need for pre-completion sound testing.

Full information is available from the Robust Detail – www.robustdetails.com. Please refer to E-FC-15.

Applications

Regupol® Quietlay robust detail screed isolation is specifically designed for the residential and student accommodation markets as a superior cost-effective acoustic underscreed material.

It is particularly suited to the following developments:

  • Apartments
  • Student Accommodation

Regupol® QuietLay Acoustic Under Screed Insulation Physical Information

Sheet Length
Sheet Width
Sheet Thickness
2250mm
1150mm
5mm
Regupol® QuietLay Acoustic Under Screed Insulation Technical Information

Density
Tensile Strength
(DIN 53571)
Thermal
Conductivity
Elongation at
Break
Temperature
Resistance
755kg/m3
approx. 0.55N/mm2
approx. 0.14W/mK
approx. 78%
-40ºC to +115ºC

Quietlay Robust Detail Screed Isolation Installation Video

Regupol® QuietLay Acoustic Under Screed Insulation without DPM – for use with Sand/Cement Screeds Only

robust detail screed isolation build-up 1

Regupol® QuietLay Acoustic Under Screed Insulation with DPM – for Free-Flowing Screeds

robust detail screed isolation installation diagram

For the latest technical data sheets and installation guidelines, please call 01925 577711. Thank you.
