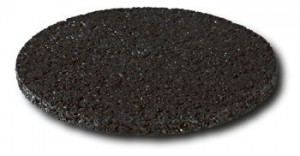

Regupol® 7210C Acoustic Resilient Layer

Regupol® 7210C Acoustic Resilient Layer is a cost-effective rubber bound product manufactured from recycled materials. Regupol® is compatible with all types of floor screed; this high performing isolation solution delivers superior impact and airborne performance.

Regupol 7210C Acoustic Resilient Layer

About Our Acoustic Resilient Layer

Regupol® 7210C Acoustic Resilient Layer is used under all types of floor screeds in new build apartments and is aimed at constructions where

Pre-Completion Testing (PCT) is preferred to that
of a Robust Detail (RD).
Regupol® 7210C Acoustic Resilient Layer is an under screed product designed to isolate screeds from the
main structure of the building reducing impact energy generated by general footfall.



Benefits
  • Regupol® 7210C Acoustic Resilient Layer been independently tested on-site to show compliance with the new building regulations in accordance with Approved Document E 2003.
  • Approved by NHBC for ADE 2003 compliance.
  • Excellent impact and airborne performance.
  • Offers long-term performance without collapse or “bottoming” out under high point loads.
  • Minimal creep even under high loads.
  • Resistant to ageing and deformation.
  • Quick and easy to install. No need for separate perimeter strips.
  • Minimises construction heights.
  • High quality and exact material thickness guaranteed.
  • Suitable for use with under floor heating.
  • Protects expansion joints
  • Supplied in easy to handle sheets.
  • Sustainable and also completely recyclable
  • Mildew and moisture proof
  • Zero global warming potential (GWP) and zero ozone depletion potential (ODP).

Acoustic Resilient Layer for Student AccommodationApplications for Our Acoustic Resilient Layer

Regupol® 7210C is designed for applications where superior and cost effective impact sound control is required.

Regupol® 7210C is particularly suited to a variety of new build projects where impact sound needs to be addressed, applications include the following developments:-

  • Apartments
  • Hotels
  • Retail
  • Education Buildings

Specification of our Acoustic Resilient Layer

Regupol® 7210C Acoustic Resilient Layer is a cost effective rubber-bound product, manufactured from recycled materials. Compatible with all types of floor screed, this high performing isolation solution delivers superior impact and airborne performance.

Regupol® 7210C Acoustic Resilient Layer is quick and easy to install, and because separate perimeter strips are not required, using this system helps ensure an efficient and reliable installation.
Sheet length
Sheet width
Material thickness
2250mm
1150mm
5mm
Regupol® 7210C Acoustic Resilient Layer conforms to the following specifications:
Density
Tensile
strength
(DIN 53571)
Thermal
conductivity
Elongation at
break
Temperature
resistance
Airborne
sound
insulation
Impact
sound
insulation
720kg/m2
approx
0.5N/mm2
approx
0.14W/mK
approx
75%
-40°C to
+115°C
49dB
(mean average)
46dB
(mean average)
*Building Regulations Approved Document E (2003) requirements 45dB or greater
(Performance figures obtained from independent testing)

Installation Guidelines

Acoustic Resilient Layer Joint DetailRegupol® 7210C Acoustic Resilient Layer is quick and easy to install, with comprehensive installation guidelines available on request.

Before you lay Regupol® 7210C Acoustic Resilient Layer

  1. Prepare the Base Floor: It is important that the base floor is clean (fee from loose dirt and concrete dust). Flat (within National Building Standards +5mm over a 5m span) and where possible, dry

Laying Regupol® 7210C Acoustic Resilient Layer

  1. The Regupol® 7210C Acoustic Resilient Layer is supplied in sheet form.  A sharp craft knife and
    straight edge must be used for cutting to size
  2. Acoustic Resilient Layer Perimeter EdgesJoints must be overlapped.  The overlap must be at least 50mm and taped down using Regupol® Hi-tack tape
  3. Turn up at all perimeter edges. The Regupol® 7210C Acoustic Resilient Layer should sit above the finished screed height ensuring that there is sufficient material available to lap under all wall linings and skirting boards (we recommend a minimum excess of 75mm).
  4. Lay a waterproof membrane (e.g. Visqueen), minimum of 0.2mm thick over the entire area.  This must be overlapped by at least 100mm and must also cover the upturned edges of the Regupol®.  All joints must be taped to prevent movement during the casting process.
You can now cast the screed taking the usual precautions to avoid damaging or moving the Membrane and the Regupol® 7210C Acoustic Resilient Layer.NB. Both the screed thickness and method of installation must be advised by the contractor responsible for the screed package.
